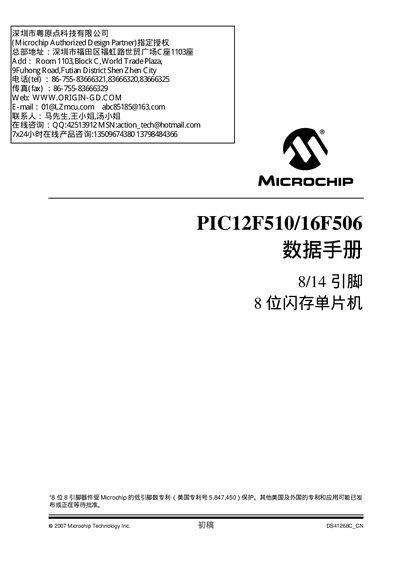

This datasheet provides reference for PIC12F510/16F506 8/14 pin 8-bit flash microcontrollers
The PIC12F510 and PIC16F506 are low‑cost, high‑performance 8‑bit flash microcontrollers built on a static CMOS core. They feature a RISC architecture with 33 single‑cycle instructions, multiple oscillator options, watchdog timer, code protection, and a range of I/O capabilities.
This datasheet details the device memory organization, pin assignments, electrical specifications, package options, and development support tools such as assemblers, simulators, and programmers. This manual is written in Chinese.
| Program memory | 1024 words |
|---|---|
| Operating voltage (VDD) | 2.0 V to 5.5 V |
| Industrial temperature range | -40 °C to +85 °C |
| Extended temperature range | -40 °C to +125 °C |
| Maximum clock frequency | 8 MHz (PIC12F510) / 20 MHz (PIC16F506) |
| Standby current (2 V) | ≈100 nA |
The devices operate from 2.0 V up to 5.5 V.
The PIC12F510 provides 1024 words of flash program memory.
The PIC16F506 can run at up to 20 MHz.
