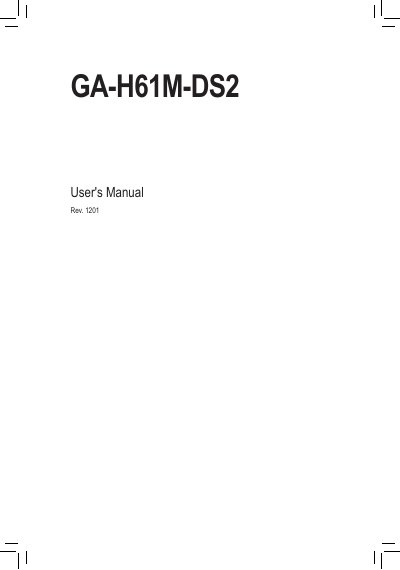

Gigabyte GA-H61M-DS2 Motherboard User Manual
This manual explains how to install and configure the Gigabyte GA-H61M-DS2 Micro ATX motherboard. It covers hardware installation, CPU and memory mounting, expansion card insertion, and connection of all internal and rear panel connectors.
Key sections include detailed product specifications, BIOS configuration options, driver installation procedures, regulatory information, and contact details for technical support. This manual is written in Chinese.
Gigabyte GA-H61M-DS2 specifications
| CPU Support | Intel® Core i7/i5/i3, Pentium, Celeron (LGA1155) |
|---|---|
| Chipset | Intel® H61 Express |
| Memory Slots | 2 DDR3 DIMM sockets, up to 16 GB total |
| Supported Memory Speed | DDR3 1333/1066/800 MHz |
| Integrated Graphics | 1 × D‑Sub port |
| Audio Codec | Realtek/VIA HD audio codec |
| LAN | Atheros/Realtek GbE (10/100/1000 Mbit) |
| Expansion Slots | 1 × PCIe x16, 2 × PCIe x1 |
| SATA Connectors | 4 × SATA 3 Gb/s |
| USB Ports | Up to 8 USB 2.0/1.1 (4 rear, 4 internal) |
| Form Factor | Micro ATX (22.6 cm × 17.4 cm) |
All Gigabyte GA-H61M-DS2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Gigabyte GA-H61M-DS2 Motherboard User Manual 40 p
- Gigabyte GA-H61M-DS2 User Manual 40 p
- Gigabyte GA-H61M-DS2 Motherboard User Manual 40 p
- Gigabyte GA-H61M-DS2 Motherboard User Manual 40 p
- Gigabyte GA-H61M-DS2 Motherboard User Manual 40 p
- Gigabyte GA-H61M-DS2 Motherboard User Manual 40 p
- Gigabyte GA-H61M-DS2 Motherboard User Manual 40 p
- Gigabyte GA-H61M-DS2 Motherboard User Manual 40 p
- Gigabyte GA-H61M-DS2 Motherboard User Manual 40 p
Questions answered in these manuals
How many memory slots does the GA-H61M-DS2 motherboard have?
It has two DDR3 DIMM sockets that support up to 16 GB of system memory.
What type of LAN chip is used on the GA-H61M-DS2?
The board uses an Atheros/Realtek Gigabit Ethernet LAN chip supporting 10/100/1000 Mbit.
How can I check the motherboard revision?
The revision number is displayed as "REV: XX." on the board; for example, "REV: 10" indicates revision 1.0.
How many SATA devices can be connected?
The board provides four SATA 3 Gb/s connectors, allowing up to four SATA devices.
How many SATA ports are available on the GA‑H61M‑DS2?
The motherboard provides four SATA 3 Gb/s ports for storage devices.
How many SATA ports are available?
There are four SATA 3 Gb/s ports for storage devices.
