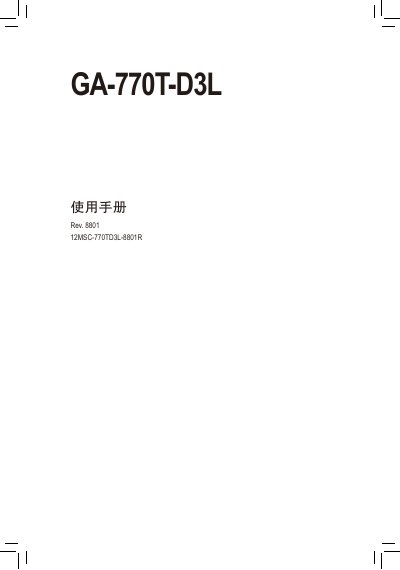

Gigabyte GA-770T-D3L Motherboard User Manual
This manual covers everything needed to install and configure the GA-770T-D3L motherboard, including safety precautions, hardware installation steps, BIOS configuration, driver installation, and unique Gigabyte utilities. It also contains a full table of contents, box contents list, and contact information for technical support.
Technical specifications are detailed in the Product Specifications section, describing the CPU socket, chipset, memory support, audio and LAN controllers, expansion slots, storage interfaces, and USB ports. The appendix provides additional configuration guides and troubleshooting FAQs. This manual is written in Chinese.
Gigabyte GA-770T-D3L specifications
| CPU Socket | AM3+ (supports AMD FX, Phenom II, Athlon II) |
|---|---|
| North Bridge Chipset | AMD 880G |
| South Bridge Chipset | AMD SB710 |
| Memory Slots | 2 x DDR3 DIMM, up to 8 GB total |
| Supported Memory Speed | DDR3 1666 (OC)/1333/1066 MHz |
| Audio Codec | Realtek ALC887 |
| LAN Controller | Realtek RTL8111E 10/100/1000 Mbit |
| Expansion Slots | 1 × PCIe x16, 4 × PCIe x1, 2 × PCI |
| SATA Connectors | 6 × SATA 3 Gb/s |
| USB Ports | Up to 10 × USB 2.0/1.1 |
All Gigabyte GA-770T-D3L documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How is the motherboard revision number displayed?
The revision number appears as "REV: X.X", for example "REV: 1.0".
What type of CPU socket does the GA-770T-D3L motherboard use?
It uses an AM3+ socket that supports AMD FX, Phenom II, and Athlon II processors.
How many USB ports does the GA-770T-D3L motherboard support?
It supports up to 10 USB 2.0/1.1 ports, with 6 ports on the rear panel and 4 additional ports via internal headers.
How many SATA connectors are available?
The motherboard provides six SATA 3 Gb/s connectors for storage devices.
How do I update the BIOS on the GA-770T-D3L?
Use the Q-Flash utility within the BIOS to load and flash the new BIOS file.
How do I install the CPU and CPU fan?
Place the CPU into the AM3+ socket, secure it, then attach the CPU fan according to the mounting instructions.
