Key facts
- Brand
- Gigabyte
- Model
- GA-Z68M-D2H
- Category
- Other Computer Accessories
- Documents
- 3
- Languages
- ZH · EN
- Last added
- 2012-03-13
Start here

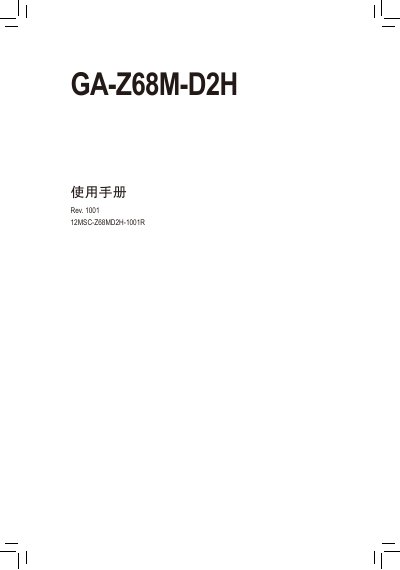

Gigabyte GA-Z68M-D2H Motherboard User Manual
This manual provides step‑by‑step instructions for installing and configuring the Gigabyte GA‑Z68M‑D2H motherboard. It covers hardware installation, CPU and memory setup, expansion card insertion, rear I/O connectors, and detailed BIOS configuration options.
Additional sections describe driver installation, unique Gigabyte features such as Xpress Recovery2 and Cloud OC, and an extensive appendix with troubleshooting, warranty information, and service contacts. This manual is written in Chinese.
Gigabyte GA-Z68M-D2H specifications
| CPU socket | LGA1155 |
|---|---|
| Memory slots | 4 DDR3 DIMM slots, up to 32 GB |
| Supported memory speeds | DDR3 2133/1866/1600/1333/1066 MHz |
| Chipset | Intel® Z68 |
| LAN controller | Realtek RTL8111E 10/100/1000 Mbit |
| Audio codec | Realtek ALC889 |
All Gigabyte GA-Z68M-D2H documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU socket does the GA‑Z68M‑D2H motherboard use?
It uses an LGA1155 socket for Intel® Core and Pentium processors.
How many DDR3 memory slots are available and what is the maximum memory capacity?
The board provides four DDR3 DIMM slots that together support up to 32 GB of memory.
What items are included in the box?
The box contains the GA‑Z68M‑D2H motherboard, a driver disk, the user’s manual, a quick installation guide, two SATA cables, a 1/0 shield, and optional items such as a 2‑port USB 2.0 bracket, a 2‑port SATA power cable, and a COM port cable.
How can I identify the motherboard revision?
The revision number is printed on the motherboard as "REV: X.X" (e.g., "REV: 1.0").
