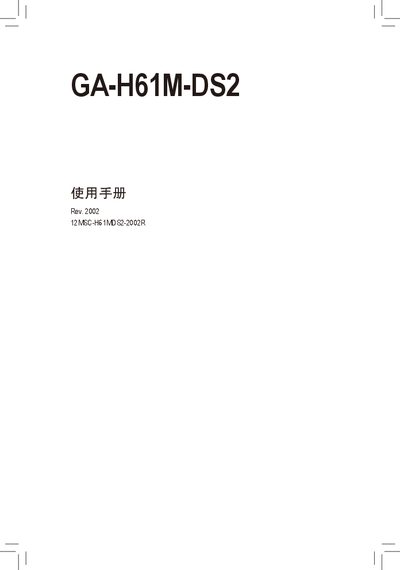

GA-H61M-DS2 User Manual is a manual for Gigabyte GA-H61M-DS2 motherboard, which mainly introduces the hardware installation, BIOS program settings and driver installation
This manual covers everything needed to install and configure the Gigabyte GA-H61M-DS2 motherboard. It includes safety precautions, hardware installation instructions, BIOS setup, and detailed diagrams of the board layout.
The document also lists the technical specifications such as supported CPUs, memory types, expansion slots, and connectivity options, and provides after‑sales service and warranty details. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Chipset | Intel H61 |
| Memory slots | 2 DDR3 DIMM slots, up to 16 GB |
| Supported memory type | DDR3 1333/1066/800 MHz, non‑ECC |
| SATA ports | 4 × SATA 3 Gb/s |
| USB ports | Up to 8 × USB 2.0/1.1 |
| Power connectors | 24‑pin ATX main, 4‑pin ATX12V |
The motherboard provides four SATA 3 Gb/s ports for storage devices.
