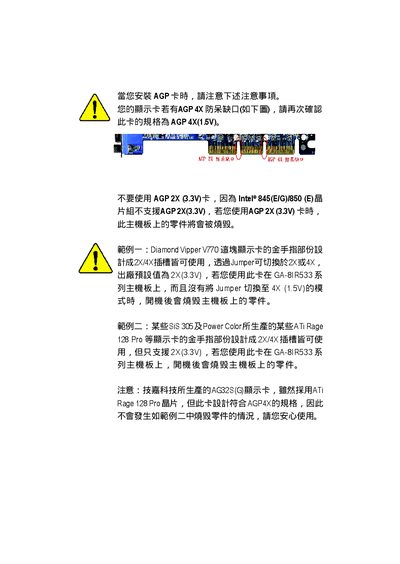

GA-8IR533 series P4 Titans DDR main-board chinese installation Manual
This manual covers the GA-8IR533 motherboard, detailing its CPU socket, supported processors, chipset, memory types, AGP and PCI slots, and I/O connectors. It includes a declaration of conformity, FCC compliance information, and a full layout diagram.
Installation steps describe how to mount the board, connect power, attach the CPU, install DDR memory modules, and configure BIOS settings using the Setup Utility. The guide also explains hardware monitoring, power management options, and troubleshooting tips. This manual is written in Chinese.
Gigabyte GA-8IR533 specifications
| CPU socket | Socket 478 |
|---|---|
| Supported CPU | Intel® Pentium® 4 (Northwood, 0.13 µm) |
| Chipset | Intel® 845D HOST/AGP/Controller |
| AGP slot | AGP 4X (1.5 V) |
| IDE interfaces | 2 IDE bus master (UDMA 33/ATA 66/ATA 100) |
Source: GA-8IR533 series P4 Titans DDR main-board chinese installation Manual
All Gigabyte GA-8IR533 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What CPU socket does the GA-8IR533 motherboard use?
It uses a Socket 478 for Intel Pentium 4 processors.
From: GA-8IR533 series P4 Titans DDR main-board chinese installation Manual
Which chipset is integrated on the GA-8IR533?
The board is built around the Intel 845D HOST/AGP/Controller chipset.
From: GA-8IR533 series P4 Titans DDR main-board chinese installation Manual
