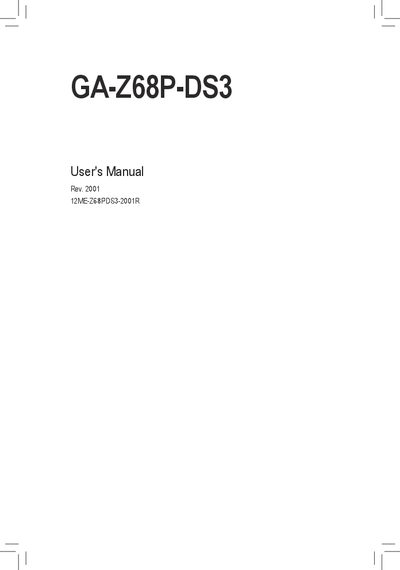

Gigabyte GA-Z68P-DS3 Motherboard User Manual
This manual covers everything needed to install and configure the GA-Z68P-DS3 motherboard, including hardware installation steps, BIOS options, driver setup, and unique features such as Xpress Recovery and Cloud OC. It also contains safety precautions, troubleshooting tips, and contact information for technical support.
The document includes a detailed table of contents, motherboard layout diagrams, block diagrams, and specifications for CPU support, memory, storage interfaces, expansion slots, and onboard graphics, helping users build and maintain a reliable PC system.
Gigabyte GA-Z68P-DS3 specifications
| Memory slots | 4 DDR3 DIMM sockets, up to 32 GB |
|---|---|
| Supported memory speeds | DDR3 2133/1866/1600/1333/1066 MHz |
| SATA ports | 2 × 6 Gb/s, 3 × 3 Gb/s, 1 × mSATA |
| LAN controller | Realtek GbE 10/100/1000 Mbit |
| PCI Express slots | 1 × PCIe x16 (x16), 1 × PCIe x16 (x4), 2 × PCIe x1 |
| Onboard graphics output | 1 × HDMI (max 1920×1200) |
All Gigabyte GA-Z68P-DS3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many DDR3 memory slots are available and what is the maximum memory capacity?
The board has four DDR3 DIMM slots supporting up to 32 GB of system memory.
What SATA ports are provided on the motherboard?
There are two SATA 6 Gb/s ports, three SATA 3 Gb/s ports, and one mSATA connector.
How can I identify the motherboard revision?
The revision number is printed on the board as "REV: X.X", for example "REV: 1.0".
