Key facts
- Brand
- Gigabyte
- Model
- GA-7VT600 1394
- Category
- Other device
- Industry
- Computers
- Documents
- 2
- Languages
- NL · EN
- Last added
- 2012-05-04
Start here

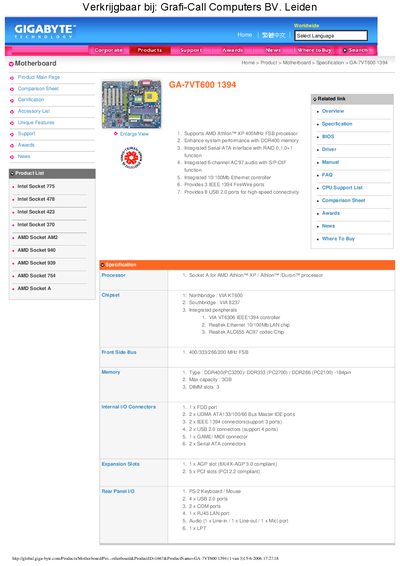

Gigabyte GA-7VT600 1394 Product Specification
The GA-7VT600 1394 is an ATX motherboard that supports AMD Athlon™ XP 400 MHz FSB processors and up to 3 GB of DDR400/DDR333/DDR266 memory. It features a VIA KT600 northbridge, VIA 8237 southbridge, integrated Serial‑ATA with RAID, three IEEE‑1394 (FireWire) ports, eight USB 2.0 ports, and a 10/100 Mb Ethernet controller.
Additional features include dual BIOS, Xpress Install/Recovery utilities, hardware health monitoring via BIOS, and a software bundle with Norton security tools and Gigabyte utilities. The rear panel provides PS/2, COM, LAN, audio, and LPT connectors, while internal connectors include IDE, SATA, USB, and a game/MIDI port. This manual is written in Dutch.
Gigabyte GA-7VT600 1394 specifications
| Supported CPU | AMD Athlon™ XP 400 MHz FSB processor |
|---|---|
| Northbridge Chipset | VIA KT600 |
| Southbridge Chipset | VIA 8237 |
| Memory Type | DDR400/DDR333/DDR266 DIMM |
| Maximum Memory Capacity | 3 GB |
| USB 2.0 Ports | 8 ports |
| FireWire (IEEE‑1394) Ports | 3 ports |
| Audio Codec | 6‑channel AC’97 with S/PDIF |
| Form Factor | ATX |
All Gigabyte GA-7VT600 1394 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How many USB 2.0 ports does the GA-7VT600 1394 provide?
The motherboard provides eight USB 2.0 ports.
What chipset is used on the GA-7VT600 1394?
It uses a VIA KT600 northbridge and a VIA 8237 southbridge.
Which CPUs are compatible with the GA‑7VT600 1394 motherboard?
The board supports AMD Athlon, Athlon XP and Duron processors using Socket A.
From: Gigabyte GA-7VT600 1394 Motherboard Installation Manual
What types of memory can be installed?
It accepts DDR DIMM modules of PC2100, PC2700 or PC3200, up to a total of 3 GB.
From: Gigabyte GA-7VT600 1394 Motherboard Installation Manual
