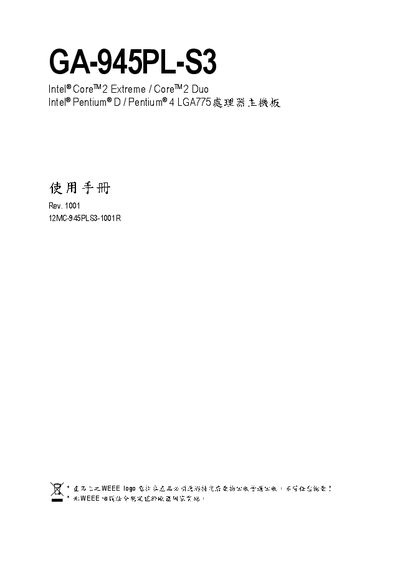

Gigabyte GA-945PL-S3 Motherboard User Manual
This manual covers the hardware installation process for the GA-945PL-S3 motherboard, including CPU, cooling, memory, and peripheral connections. Detailed diagrams show the layout of connectors, slots, and ports.
It also explains BIOS setup options, power‑management features, and provides a troubleshooting section to help resolve common issues. Contact information for Gigabyte global support is listed at the end of the document. This manual is written in Chinese.
Gigabyte GA-945PL-S3 specifications
| CPU Socket | LGA775 |
|---|---|
| Chipset | Intel 945PL |
| Supported Memory | DDRII DIMM 533/400 MHz |
| SATA Interface | SATA 3 Gb/s |
| USB Ports | 2‑port USB 2.0 and 4‑port USB 2.0 expansion boards |
| LAN Controller | Realtek RTL8111B |
All Gigabyte GA-945PL-S3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU socket does the GA-945PL-S3E motherboard use?
It uses an LGA775 socket for compatible Intel processors.
Which type of memory is supported?
The board supports DDRII DIMM modules running at 533 MHz or 400 MHz.
What CPU socket does the GA-945PL-S3 motherboard use?
The motherboard uses an LGA775 socket for Intel processors.
Which chipset is integrated on the GA-945PL-S3 board?
It is based on the Intel 945PL chipset.
