Key facts
- Brand
- Gigabyte
- Model
- GA-H61M-D2H-USB3
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-13
Start here

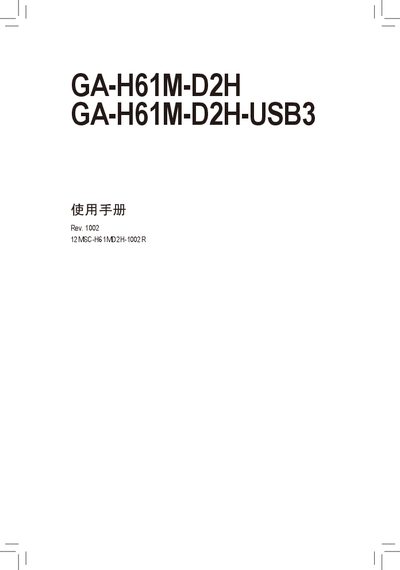

Gigabyte GA-H61M-D2H-USB3 Motherboard User Manual
This manual guides users through hardware installation, including CPU, memory, and expansion cards, and explains safety precautions such as anti‑static handling and proper power‑off procedures. It also covers BIOS setup, driver installation, and troubleshooting tips.
The document lists detailed technical specifications of the GA-H61M-D2H-USB3 board, including supported processors, chipset, memory slots, storage interfaces, video outputs, audio, networking, and power connectors, as well as warranty and support information. This manual is written in Chinese.
Gigabyte GA-H61M-D2H-USB3 specifications
| CPU Socket | LGA1155 |
|---|---|
| Chipset | Intel H61 |
| Supported Memory Speed | DDR3 1333/1066/800 MHz |
| SATA Ports | 4 SATA 3 Gb/s ports |
| PCI Express Slots | 1 PCIe x16 slot, 1 PCIe x1 slot |
| Power Connectors | 24‑pin ATX main power, 4‑pin ATX 12 V |
| LAN | Atheros/Realtek GbE LAN chip |
All Gigabyte GA-H61M-D2H-USB3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU socket does the GA-H61M-D2H-USB3 motherboard use?
It uses an LGA1155 socket for compatible Intel processors.
What CPU socket does the GA-H61M-D2H motherboard use?
It uses an LGA1155 socket.
From: Gigabyte GA-H61M-D2H/GA-H61M-D2H-USB3 Motherboard User Manual
What is the maximum memory supported by the GA-H61M-D2H-USB3 board?
The board supports up to 16 GB of DDR3 memory across four DIMM slots.
From: Gigabyte GA-H61M-D2H/GA-H61M-D2H-USB3 Motherboard User Manual
