Start here

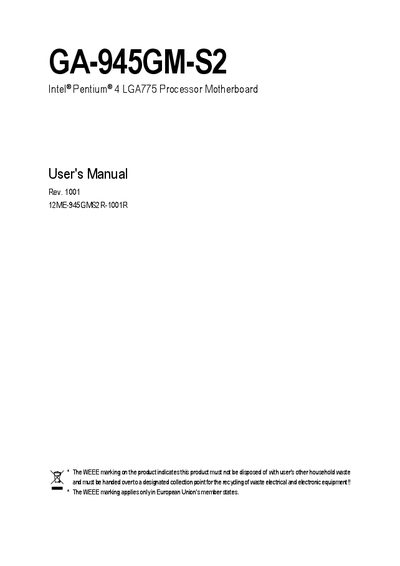

GA-945GM-S2 Intel Pentium 4 LGA775 Processor Motherboard
This manual covers everything needed to install and configure the Gigabyte GA-945GM-S2 Intel® Pentium® 4 LGA775 processor motherboard. It includes hardware installation instructions, BIOS setup details, driver installation procedures, and a complete list of specifications and accessories.
Key sections include hardware installation (CPU, memory, expansion cards), BIOS menu navigation, driver and utility installation, layout diagrams, block diagrams, optional accessories, and contact information for Gigabyte support worldwide.
Gigabyte GA-945GM-S2 specifications
| CPU Socket | LGA775 |
|---|---|
| Chipset | Intel 945 |
| Memory Type | DDRII 667/533 MHz DIMM |
| SATA Interface | 3 Gb/s SATA |
| LAN Controller | Realtek RTL8141B |
Source: GA-945GM-S2 Intel Pentium 4 LGA775 Processor Motherboard
All Gigabyte GA-945GM-S2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU socket does the GA-945GM‑S2 motherboard use?
It uses an LGA775 socket for Intel Pentium 4 processors.
From: GA-945GM-S2 Intel Pentium 4 LGA775 Processor Motherboard
Which memory type is supported by the GA-945GM‑S2?
The board supports DDRII DIMM modules at 667 MHz or 533 MHz.
From: GA-945GM-S2 Intel Pentium 4 LGA775 Processor Motherboard
Where can I find the BIOS power‑management settings?
The BIOS chapter includes a “Power Management Setup” section that describes all power‑saving options.
How do I install the motherboard drivers?
Chapter 3 of the manual provides detailed driver‑installation procedures for the GA‑945GM series.
