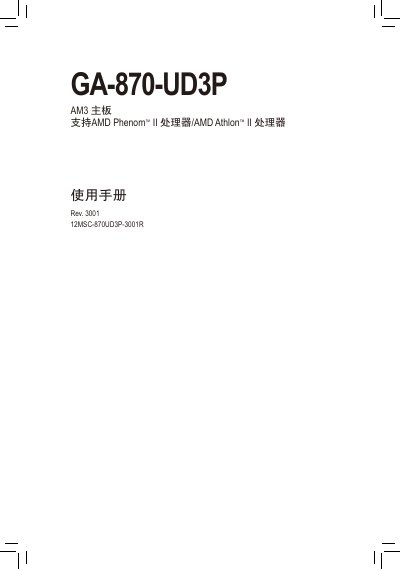

Gigabyte GA-870-UD3P AM3 Motherboard User Manual
This manual provides step‑by‑step instructions for installing the GA-870‑UD3P motherboard, including CPU, memory, cooling fan and expansion card installation. Safety precautions and anti‑static guidelines are included to protect both the hardware and the installer.
The document also details BIOS configuration, driver installation, unique Gigabyte features such as Xpress Recovery and EasyTune, and a comprehensive appendix with warranty information and service contacts. This manual is written in Chinese.
Gigabyte GA-870-UD3P specifications
| Supported CPUs | AMD Phenom™ II and AMD Athlon™ II (AM3 socket) |
|---|---|
| Chipset | AMD 870 northbridge, AMD SB850 southbridge |
| Memory Slots | 4 × DDR3 DIMM, up to 16 GB total |
| Network Controller | Realtek RTL8111E 10/100/1000 Mbit Ethernet |
| SATA Ports | 6 × SATA 6 Gb/s connectors |
| USB Ports | Up to 14 × USB 2.0/1.1 ports |
All Gigabyte GA-870-UD3P documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which AMD processors are compatible with the GA-870-UD3P motherboard?
The board supports AMD Phenom™ II and AMD Athlon™ II processors for the AM3 socket.
How many DDR3 memory slots are available and what is the maximum memory capacity?
There are four DDR3 DIMM slots that can hold up to 16 GB of memory in total.
