Start here

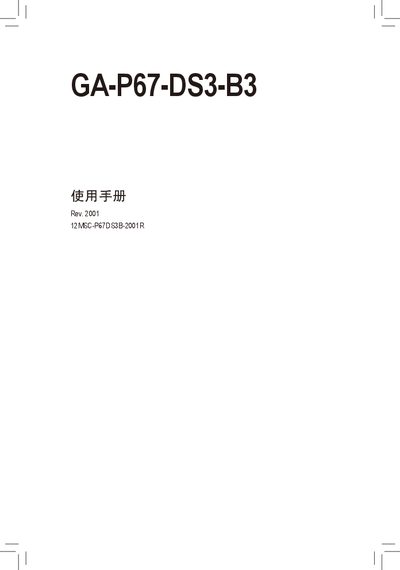

Gigabyte GA-P67-DS3-B3 Motherboard User's Manual
This manual covers all steps needed to install the GA-P67-DS3-B3 motherboard, from hardware installation and CPU/Memory setup to connecting expansion cards and peripherals. It also explains BIOS configuration, power management, and unique Gigabyte features such as Xpress Recovery and Cloud OC.
Additional sections guide you through driver installation, audio and LAN configuration, RAID setup, and troubleshooting. Appendices contain detailed SATA, audio, and regulatory information, as well as contact details for Gigabyte support worldwide.
Gigabyte GA-P67-DS3-B3 specifications
| Chipset | Intel® P67 Express |
|---|---|
| Memory Slots | 4 x 1.5V DDR3 DIMM, up to 32 GB |
| Supported Memory Speeds | DDR3 2133/1866/1600/1333/1066 MHz |
| LAN | Realtek GbE, 10/100/1000 Mbit |
| PCI Express Slots | 1 x PCIe x16 (x16), 1 x PCIe x16 (x4), 2 x PCIe x1 |
| RAID Support | RAID 0, 1, 5, 10 |
All Gigabyte GA-P67-DS3-B3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What should I do to avoid static damage when installing the motherboard?
Wear an electrostatic discharge (ESD) wrist strap or touch a metal object before handling the board.
Where can I find the BIOS update utilities in the manual?
The BIOS Update Utilities are listed in Chapter 4 under the section "4‑2 BIOS Update Utilities".
How do I install the CPU on the GA-P67-DS3-B3 motherboard?
Power off the system, locate the LGA1155 socket, align the CPU’s notch with the socket’s key, apply thermal paste, and gently place the CPU before securing the socket latch.
What memory configuration enables dual‑channel operation?
Install matching DDR3 modules in the paired slots (DDR3_1 with DDR3_2 or DDR3_3 with DDR3_4) to activate dual‑channel mode.
