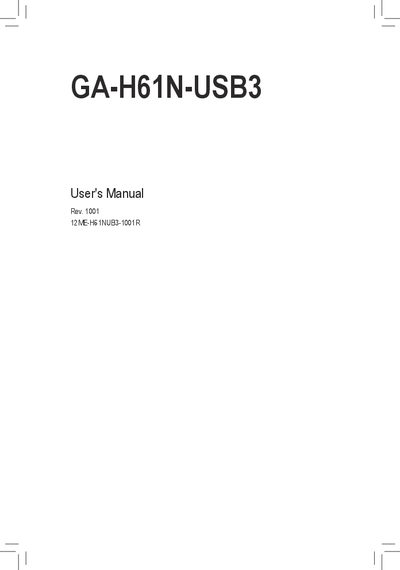

Gigabyte GA-H61N-USB3 Motherboard User Manual
This manual covers everything you need to set up the Gigabyte GA-H61N-USB3 motherboard, from unpacking and installing the CPU, memory, and expansion cards to configuring BIOS settings and installing drivers. Detailed diagrams of the motherboard layout and block diagram help you identify connectors and components.
Additional sections describe unique Gigabyte features such as Xpress Recovery, BIOS update utilities, and power‑saving technologies, as well as troubleshooting tips and contact information for technical support. This manual is written in Chinese.
Gigabyte GA-H61N-USB3 specifications
| CPU Support | Intel® Core™ i7/i5/i3, Pentium, Celeron processors (LGA1155) |
|---|---|
| Chipset | Intel® H61 Express Chipset |
| LAN | Realtek RTL8111E 10/100/1000 Mbit Ethernet |
All Gigabyte GA-H61N-USB3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How is the motherboard revision number displayed?
The revision number appears as "REV: X.X" on the motherboard, for example "REV: 1.0".
Where can I find BIOS update utilities?
BIOS update utilities are described in Chapter 4 under the section "BIOS Update Utilities".
What is the model number of this motherboard?
The model number is GA-H61N-USB3.
How can I contact Gigabyte support for warranty service in China?
You can call the Gigabyte China service hotline at 800‑820‑0926 or 021‑63410189 during business hours.
What CPU socket does the GA‑H61N‑USB3 motherboard use?
It uses an LGA1155 socket for Intel processors.
How can I update the BIOS on the GA‑H61N‑USB3 motherboard?
You can update the BIOS using the Q‑Flash utility or the BIOS update feature described in chapter 5.
