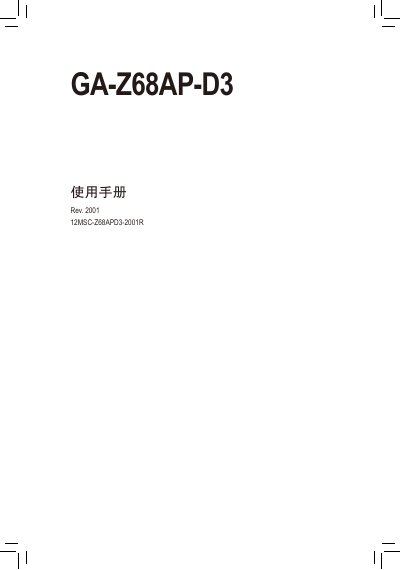

Gigabyte GA-Z68AP-D3 Motherboard User Manual
This manual covers all aspects of the GA-Z68AP-D3 motherboard, including hardware installation, CPU and memory setup, expansion card installation, and connector descriptions. It also contains BIOS program settings, driver installation guidance, and a range of unique features such as Xpress Recovery and Dynamic Energy Saver.
The document includes product specifications, troubleshooting tips, and warranty information, helping users assemble, configure, and maintain the motherboard safely and efficiently. This manual is written in Chinese.
Gigabyte GA-Z68AP-D3 specifications
| CPU socket | LGA1155 |
|---|---|
| Chipset | Intel Z68 |
| Memory slots | 4 DDR3 DIMM slots, up to 32 GB |
| Supported DDR3 speeds | 2133/1866/1600/1333/1066 MHz |
| HDMI output | 1 HDMI port, up to 1920×1200 resolution |
| Audio chip | Realtek/VIA HD audio |
| Network chip | Realtek GbE LAN (10/100/1000 Mbit) |
| PCI Express slots | 1 x16 (x16), 1 x16 (x4), 3 x1, 2 PCI |
| SATA ports | 2 SATA 6Gb/s, 3 SATA 3Gb/s, 1 mSATA |
All Gigabyte GA-Z68AP-D3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU socket does the GA-Z68AP-D3 motherboard use?
It uses an LGA1155 socket for compatible Intel processors.
How many DDR3 memory slots are available and what is the maximum supported memory?
The board has four DDR3 DIMM slots that support up to 32 GB of memory.
What is the format of the motherboard revision number?
The revision number is shown as "REV: X.X", for example "REV: 1.0".
