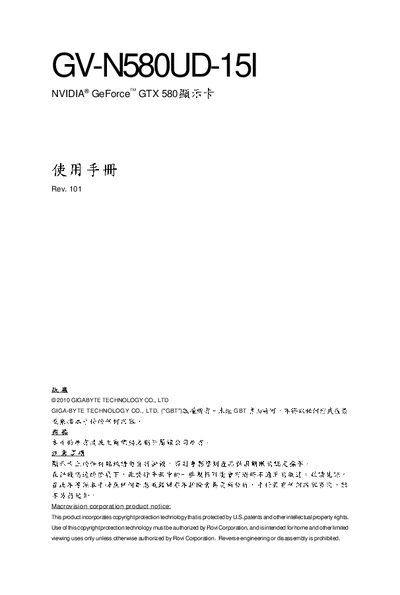

GIFABYTE GV N580UD 151 Manual
This manual covers the Gigabyte GV‑N580UD‑15I graphics card, based on the NVIDIA GeForce GTX 580 GPU. It includes a product overview, required PCI Express 2.0 slot, memory configuration, supported DirectX version, and available display outputs (two Dual‑Link DVI‑I and one mini HDMI). The guide also explains how to connect the required 6‑pin and 8‑pin auxiliary power connectors and how to enable NVIDIA SLI, including 3‑Way SLI setups.
Additional sections describe BIOS settings, system requirements, supported operating systems, and contact information for Gigabyte technical support. The document ends with a list of regional Gigabyte service websites and a disclaimer about copyright protection technology.
Gigabyte GV-N580UD-15I specifications
| GPU | NVIDIA GeForce GTX 580 |
|---|---|
| Memory | 1536 MB GDDR5 |
| Interface | PCI Express 2.0 |
| Display Connectors | 2 Dual‑Link DVI‑I, 1 mini HDMI |
| Power Connectors | 6‑pin + 8‑pin PCI Express auxiliary |
| Supported Operating Systems | Windows XP, Vista, 7 |
| DirectX Support | DirectX 11 |
| SLI Support | NVIDIA SLI (Scalable Link Interface) |
| HDCP Support | Yes |
Source: Gigabyte GV-N580UD-15I NVIDIA GeForce GTX 580 Graphics Accelerator User Manual
All Gigabyte GV-N580UD-15I documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power connectors are required for the GV-N580UD-15I?
Both a 6‑pin and an 8‑pin PCI Express auxiliary power connector must be connected to the card.
From: Gigabyte GV-N580UD-15I NVIDIA GeForce GTX 580 Graphics Accelerator User Manual
How many DVI connectors does the card provide?
The card provides two Dual‑Link DVI‑I connectors and one mini HDMI connector.
From: Gigabyte GV-N580UD-15I NVIDIA GeForce GTX 580 Graphics Accelerator User Manual
What power connectors are required for the GV‑N580UD‑15I?
Both a 6‑pin and an 8‑pin PCI Express auxiliary power connector must be connected to the card.
How many display outputs does the GV‑N580UD‑15I provide?
The card provides two Dual‑Link DVI‑I ports and one mini HDMI port.
