Start here

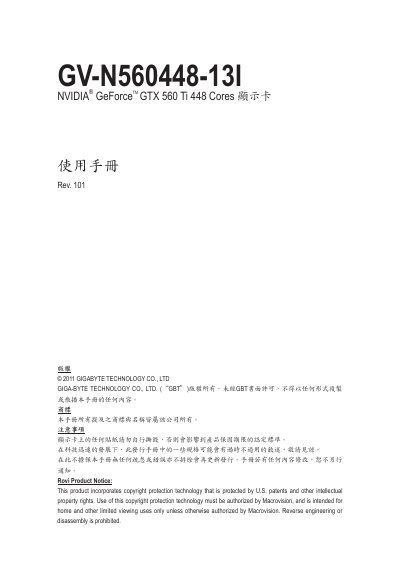

GIFABYTE GV-N560448-13I Graphics card user manual
This manual introduces the GV-N560448-131 graphics card, which is powered by an NVIDIA GeForce GTX 560 Ti GPU with 1280 MB GDDR5 memory and supports DirectX 11, HDCP, and a range of display outputs (DisplayPort, DVI‑I, DVI‑D, HDMI). Minimum system requirements include a 550 W power supply, an Intel Pentium 4 or AMD Athlon XP class CPU, and at least 2 GB of system memory.
The guide details hardware installation steps, including connecting two 6‑pin PCI‑Express auxiliary power connectors, securing the card in a PCI‑Express x16 slot, and attaching display cables. It also covers software installation, driver setup, SLI configuration, safety precautions against static electricity, and troubleshooting tips.
Gigabyte GV-N560448-13I specifications
| GPU | NVIDIA GeForce GTX 560 Ti 448‑core |
|---|---|
| Memory | 1280 MB GDDR5 |
| DirectX Support | DirectX 11 |
| Display Outputs | DisplayPort, DVI‑I, DVI‑D, HDMI |
| HDCP | Supported |
| SLI Support | Supported (requires identical cards) |
| Power Connectors | Two 6‑pin PCI‑Express auxiliary connectors |
| Recommended PSU (single card) | 550 W or higher |
| Recommended PSU (SLI) | 850 W or higher |
All Gigabyte GV-N560448-13I documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power supply is recommended for the GV‑N560448‑131?
A 550 W power supply is recommended for a single card, and an 850 W supply is recommended when using SLI.
How many PCI‑Express power connectors does the card need?
The card requires two 6‑pin PCI‑Express auxiliary power connectors.
How do I connect power to the GV-N560448-13I?
Connect two 6‑pin PCI Express auxiliary power connectors from the power supply to the connectors on the top edge of the card.
Which expansion slot is required for the GV-N560448-13I?
The card requires a PCI Express x16 slot.
