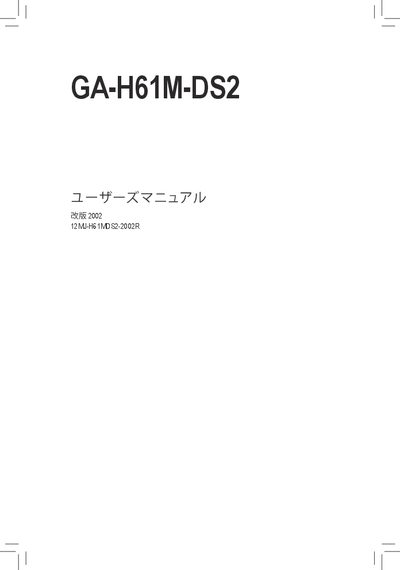

GA-H61M-DS2 user manual, introduces the hardware installation, BIOS setup and driver installation of the motherboard
This manual covers the hardware installation process for the GA-H61M-DS2 motherboard, including ESD precautions, connector layout, and power‑on procedures. It also lists the box contents and provides guidance on checking the motherboard revision before updating BIOS or drivers.
Technical specifications are detailed, such as supported CPUs, memory types, expansion slots, storage interfaces, and integrated audio and LAN controllers. Regulatory declarations, FCC compliance, and safety standards are included at the end of the document. This manual is written in Japanese.
| CPU Socket | LGA1155 |
|---|---|
| Chipset | Intel H61 Express |
| Maximum Memory | 16 GB DDR3 |
| SATA Ports | 4 × SATA 3 Gb/s |
| USB Ports | 8 × USB 2.0 |
| LAN Controller | Realtek/Atheros GbE |
| Audio Codec | Realtek VIA HD |
| Expansion Slots | PCI Express x16, x1, x4 |
| Power Connector | 24‑pin ATX main power |
It uses an LGA1155 socket for Intel Core i7, i5, i3, Pentium and Celeron processors.
The board supports up to four SATA 3 Gb/s devices.
The motherboard can handle up to 16 GB of DDR3 memory in a dual‑channel configuration.
