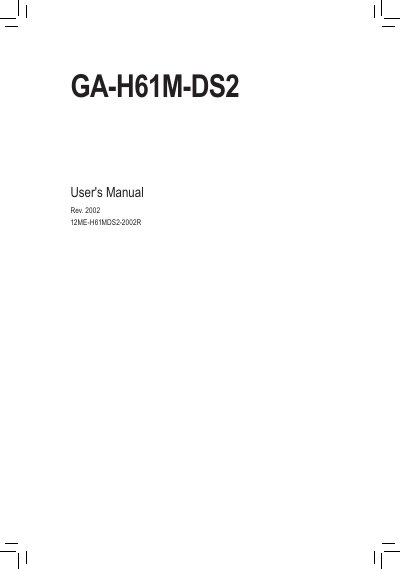

Gigabyte GA-H61M-DS2 Motherboard User Manual

GA-H61M-DS2 User's Manual introduces the features and functions of this product, including hardware installation, BIOS settings, etc.

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: English
Pages: 40
File format: PDF
File size: 14.3 MB
Published: 11 May, 2012
Updated: 01 October, 2023
Model: GA-H61M-DS2
MD5 checksum: B32528F3B98DE8011B0576EEE650F883
PDF: Gigabyte GA-H61M-DS2 Motherboard User Manual PDF

About this manual

This manual covers all aspects of the GA-H61M-DS2 motherboard, including hardware installation, BIOS configuration, driver installation, and regulatory information. It guides users through CPU, memory, and expansion card installation, as well as connector usage and system setup.

The document also lists the technical specifications of the board, such as supported CPUs, chipset, memory capacity, storage interfaces, and form factor, and includes safety and environmental compliance statements.

What's inside

Hardware Installation
BIOS Setup
Drivers Installation
Product Specifications
Regulatory Statements

Specifications

CPU Support	Intel Core i7/i5/i3, Pentium, Celeron (LGA1155)
Chipset	Intel H61 Express
Memory	2 DDR3 DIMM slots, up to 16 GB, DDR3 1333/1066/800 MHz
SATA Connectors	4 x SATA 3Gb/s
Form Factor	Micro ATX (22.6 cm x 17.4 cm)

Frequently asked questions

What type of LAN controller is integrated on the GA-H61M-DS2?

It includes an Atheros/Realtek GbE LAN chip supporting 10/100/1000 Mbit.

What is the form factor of the GA-H61M-DS2 motherboard?

The board is Micro ATX, measuring 22.6 cm × 17.4 cm.
