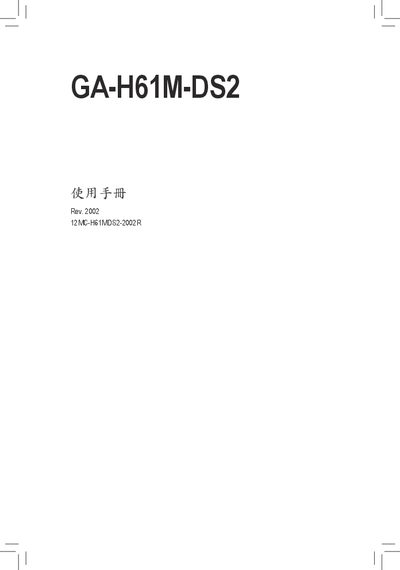

This document is the user manual for GA-H61M-DS2 motherboard, which introduces the configuration and functional block diagram of the motherboard, as well as hardware installation, BIOS configuration, and driver installation.
This manual covers hardware installation steps, including safety precautions, connector descriptions, and component placement for the GA-H61M-DS2 motherboard. It also details BIOS configuration, power management settings, and peripheral setup.
Additional sections describe the supported CPUs, memory modules, storage interfaces, and warranty information, helping users configure and maintain the board correctly. This manual is written in Chinese.
| Chipset | Intel H61 |
|---|---|
| Memory Type | DDR3 1333/1066/1800 MHz, non‑ECC |
| SATA Ports | 4 x SATA 3 Gb/s |
| USB Ports | 8 x USB 2.0/1.1 |
There are four SATA 3 Gb/s ports for storage devices.
