Key facts
- Brand
- Gigabyte
- Model
- 8I845GVM-RZ
- Category
- Other Computer Accessories
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-07
Start here

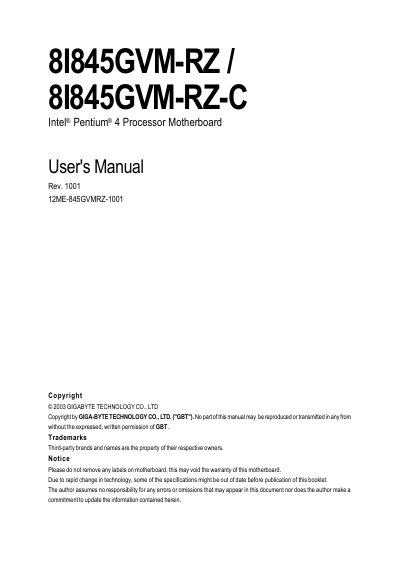

8I845GVM-RZ 8I845GVM-RZ-C Intel Pentium 4 Processor Motherboard User's Manual
This manual covers everything needed to install and configure the Gigabyte 8I845GVM-RZ motherboard, including CPU, memory, expansion cards, and I/O peripherals. It also explains safety precautions for handling delicate components.
Key sections include a detailed hardware installation process, BIOS configuration options, driver installation steps, and technical specifications such as supported CPUs, memory types, and onboard features.
Gigabyte 8I845GVM-RZ specifications
| CPU socket | Socket 478 for Intel® Pentium® 4 |
|---|---|
| Maximum memory | 2 GB DRAM |
| Memory slots | 2 dual‑inline DIMM sockets |
| Supported DDR speeds | DDR333 / DDR266 / DDR200 |
| USB ports | 6 (2 rear, 4 front) USB 2.0/1.1 |
| Audio codec | Realtek ALC655 |
| Form factor | Micro ATX 20.9 cm × 24.3 cm |
Source: 8I845GVM-RZ 8I845GVM-RZ-C Intel Pentium 4 Processor Motherboard User's Manual
All Gigabyte 8I845GVM-RZ documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of memory does the 8I845GVM-RZ support?
It uses 184‑pin DDR DIMM sockets, supporting DDR333, DDR266, and DDR200 modules up to a total of 2 GB, 2.5 V only.
From: 8I845GVM-RZ 8I845GVM-RZ-C Intel Pentium 4 Processor Motherboard User's Manual
How many USB ports are available on the motherboard?
The board provides six USB 2.0/1.1 ports – two on the rear panel and four front‑panel connectors.
From: 8I845GVM-RZ 8I845GVM-RZ-C Intel Pentium 4 Processor Motherboard User's Manual
What type of memory can be installed?
It accepts DDR DIMM modules of 200 MHz, 266 MHz, or 333 MHz speed.
From: GIFABYTE 8I845GVM-RZ 8I845GVM-RZ-C Intel Pentium 4 CPU main-board Manual
How many USB ports are provided?
The motherboard provides both USB 2.0 and USB 1.1 ports, with two USB 2.0 and four USB 1.1 connectors.
From: GIFABYTE 8I845GVM-RZ 8I845GVM-RZ-C Intel Pentium 4 CPU main-board Manual
