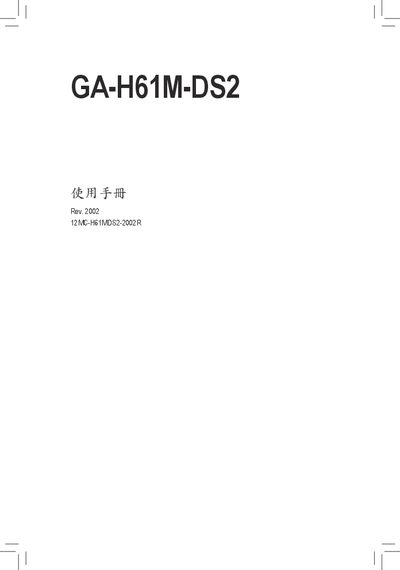

GA-H61M-DS2 user manual, including hardware installation, BIOS configuration, driver installation and other contents
This manual covers the hardware installation process for the GA-H61M-DS2 motherboard, including preparation, CPU and memory installation, connector setup, and safety precautions. Detailed BIOS configuration sections guide users through system settings, power management, and peripheral configuration.
The document also lists the technical specifications of the board, such as supported CPUs, memory types, expansion slots, and I/O interfaces, and includes warranty and compliance information for users in Taiwan. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Chipset | Intel H61 |
| Supported Memory Speed | DDR3 1333/1066/1800 MHz |
| USB Ports | 8 USB 2.0/1.1 ports |
| SATA Ports | 4 SATA 3 Gb/s connectors |
| PCI Express Slots | 1 x16 slot, 2 x1 slots |
| Power Connectors | 24‑pin ATX main, 4‑pin ATX 12 V |
| Audio Codec | Realtek/VIA HD Audio |
It uses an LGA1155 socket for Intel processors.
It provides one PCI Express x16 slot and two PCI Express x1 slots.
The motherboard includes four SATA 3 Gb/s connectors.
