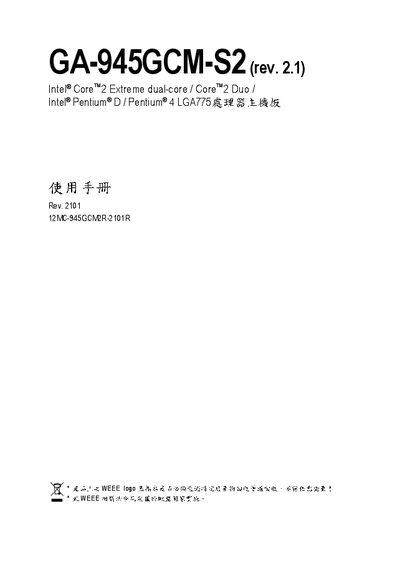

GA-945GCM-S2 (rev. 2.1) Intel Core 2 Extreme dual-core Core 2 Duo Intel Pentium D Pentium 4 LGA775 CPU system board Manual
This manual covers the GA‑945GCM‑S2 (rev. 2.1) motherboard, detailing its hardware layout, supported processors, chipset features, and BIOS configuration options. It includes sections on standard CMOS features, advanced BIOS settings, integrated peripherals, power‑management, and troubleshooting.
The document also lists connector pin‑outs, expansion slot specifications, and provides step‑by‑step instructions for installing the CPU, memory, storage devices, and configuring the system BIOS for optimal performance.
Gigabyte GA-945GCM-S2 specifications
| CPU Socket | LGA775 |
|---|---|
| Memory Type | DDRII 533/400 MHz DIMM, Dual‑Channel |
| PCI Express Slots | PCI Express x16 |
| SATA Ports | SATA 3 Gb/s |
| USB Ports | 8 USB 2.0 ports |
| LAN Controller | Realtek RTL8110SC |
| BIOS Version (example) | D2 |
All Gigabyte GA-945GCM-S2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- GA-945GCM-S2 Intel Core 2 Extreme dual-core Core 2 Duo Intel Pentium D Pentium 4 Celeron D LGA775 CPU system board Manual 72 p
- GA-945GCM-S2 (rev. 2.1) Intel Core 2 Extreme dual-core Core 2 Duo Intel Pentium D Pentium 4 LGA775 CPU system board Manual 80 p
- GA-945GCM-S2 GA-945GCMX-S2 Intel Core 2Extreme dual-core Core 2Duo Intel Pentium D Pentium 4 Celeron D LGA775 CPU system board Manual 72 p
Questions answered in these manuals
Which CPU socket does the GA-945GCM‑S2 support?
It supports an LGA775 socket.
How many USB ports are provided on the board?
The board provides eight USB 2.0 ports.
What CPU socket does the GA‑945GCM‑S2 motherboard use?
It uses an LGA775 socket for Intel processors.
How many SATA ports are available on the board?
The motherboard provides four SATA 3 Gb/s ports.
What is the model number of the motherboard?
The model number is GA‑945GCM‑S2 (also listed as GA‑945GCMX‑S2).
Does the motherboard meet FCC Class B requirements?
Yes, it conforms to FCC Part 15, Subpart B, Class B Digital Device specifications.
