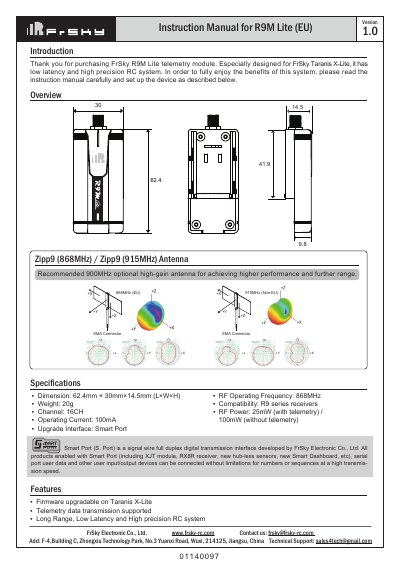

FrSky R9M Lite Telemetry Module Instruction Manual
The FrSky R9M Lite is a low latency, high precision RC system designed specifically for the FrSky Taranis X-Lite transmitter. It supports 16 channels of control and includes features such as firmware upgrades via Smart Port, telemetry data transmission, and compatibility with various receivers in the R9 series.
Read onlineFrSky R9M Lite specifications
| Dimension | 62.4mm x 30mm x 14.5mm |
|---|---|
| Weight | 20g |
| Channel | 16CH |
| Operating Current | 100mA |
| RF Operating Frequency (EU) | 868MHz |
| RF Power (with telemetry) | 25mW |
All FrSky R9M Lite documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the recommended failsafe mode if signal is lost?
If failsafe is not set, the model will hold the last position after signal is lost.
What is the operating current of the FrSky R9M Lite?
The device operates at a current of 100mA.
What are the available failsafe modes?
There are three failsafe modes: No Pulse, Hold, and Custom.
How long does it take for a failsafe setting to take effect?
You must wait 9 seconds after selecting the mode or setting a channel for the failsafe to take effect.
What is the recommended antenna for the R9M Lite?
A 900MHz optional high-gain antenna is recommended for achieving higher performance and further range.
How do I bind the receiver to the transmitter?
Put the transmitter RF module into binding mode, connect the battery to the receiver while holding its F/S button, and wait for the RED LED to flash.
