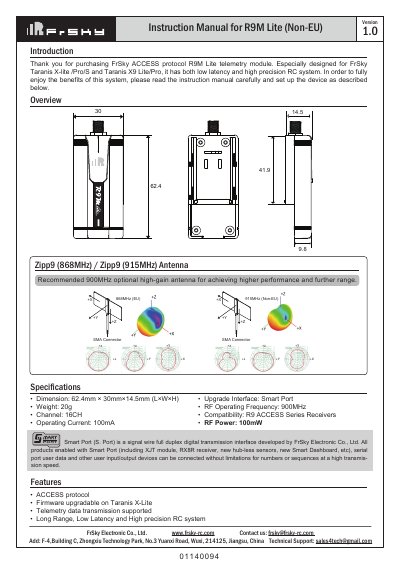

R9M Lite is an ACCESS protocol telemetry module specially designed for FrSky Taranis X-lite/Pro/S and Taranis X9 Lite/Pro. It has both low latency and high precision RC system. In order to fully enjoy the benefits of this system, please read the instruction manual carefully and set up the device as described below.
The FrSky R9M Lite is a low-latency, high-precision telemetry module operating on 900MHz with 16 channels. It utilizes the ACCESS protocol and features an upgradeable firmware interface via Smart Port (S. Port). The device measures 62.4mm x 30mm x 14.5mm and weighs 20g.
| Dimension | 62.4mm x 30mm x 14.5mm (LxWxH) |
|---|---|
| Weight | 20g |
| Channel | 16CH |
| Operating Current | 100mA |
| RF Power | 100mW |
There are three failsafe modes: No Pulse, Hold, and Custom.
You must wait 9 seconds after selecting the mode or setting a channel for the failsafe to take effect.
If failsafe is not set, the model will hold its last position after signal loss.
