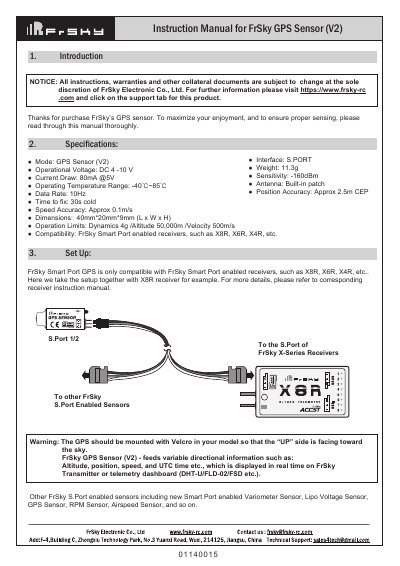

FrSky GPS Sensor V2 User Manual
The FrSky GPS Sensor V2 is a telemetry sensor designed for use with FrSky Smart Port enabled receivers such as the X8R, X6R, and X4R. It provides real-time data including altitude, position, speed, and UTC time to the transmitter or telemetry dashboard. The sensor operates on a DC 4-10V supply and features a built-in patch antenna with a sensitivity of -160dBm.
Read onlineFrSky GPS Sensor (V2) specifications
| Operational Voltage | DC 4 -10 V |
|---|---|
| Current Draw | 80mA @5V |
| Operating Temperature Range | -40°C ~85°C |
| Data Rate | 1Hz |
| Position Accuracy | Approx 2.5m CEP |
| Dimensions | 40mm*20mm*9mm |
All FrSky GPS Sensor (V2) documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the interface type for the FrSky GPS Sensor (V2)?
The interface is S.PORT.
Which FrSky receivers are compatible with this sensor?
It is compatible with FrSky Smart Port enabled receivers such as X8R, X6R, and X4R.
What are the operation limits for the FrSky GPS Sensor V2?
The device supports dynamics of 4g, an altitude limit of 50,000m, and a velocity limit of 500m/s.
Which FrSky receivers are compatible with the GPS Sensor V2?
It is compatible with FrSky Smart Port enabled receivers such as X8R, X6R, and X4R.
Which FrSky receivers are compatible with the GPS Sensor V2?
It is compatible with FrSky Smart Port enabled receivers, such as X8R, X6R, X4R, etc.
How should the GPS sensor be mounted?
The GPS should be mounted with Velcro so that the “UP” side is facing toward the sky.
