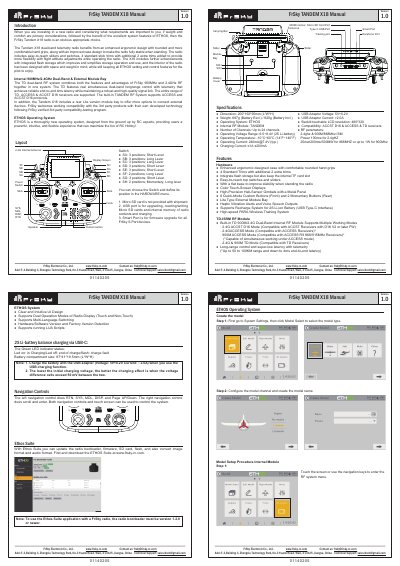

FrSky TANDEM X18 Remote Control System User Manual
The FrSky TANDEM X18 is a lightweight remote control system featuring an enhanced ergonomic design with rounded hand grips and improved stability. It utilizes the ETHOS operating system to provide a powerful and intuitive experience for RC pilots, supporting up to 24 channels and integrated flash storage.
The device includes internal 900MHz/2.4GHz dual-band RF capabilities offering long-range control with low latency. Users can charge the included 2S Li-ion battery via USB-C, monitor status through LED indicators, and utilize various switches and sliders for flight attitude adjustments. This manual is written in Chinese.
FrSky TANDEM X18 specifications
| Dimensions | 200*192*95mm (L*W*H) |
|---|---|
| Weight | 687g (Battery Excl.) / 820g (Battery Incl.) |
| Operating System | ETHOS |
| Number of Channels | Up to 24 channels |
| Operating Voltage Range | 6.5~8.4V (2S Li-battery) |
| LCD Resolution | 480*320 |
All FrSky TANDEM X18 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I charge the battery?
Charge the battery with the USB adapter (Voltage: 5V+0.2V Current: >2.0A) when using the USB charging function.
What does the Green LED indicator mean?
The Green LED indicates charging status: Led on means in Charging, and Led off means end of charge.
What is the recommended charging voltage for the USB adapter?
The recommended USB adaptor voltage is 5V+0.2V.
What are the dimensions of the FrSky TANDEM X18(S) radio?
The battery compartment size is 87*41*19.5mm (L*W*H).
What battery type is supported for charging?
The radio supports a recharge system for 2S Li-ion batteries via a USB Type-C interface.
What is the latency of the dual-band RF system?
The TD dual-band RF system achieves reliable end-to-end 4ms latency.
