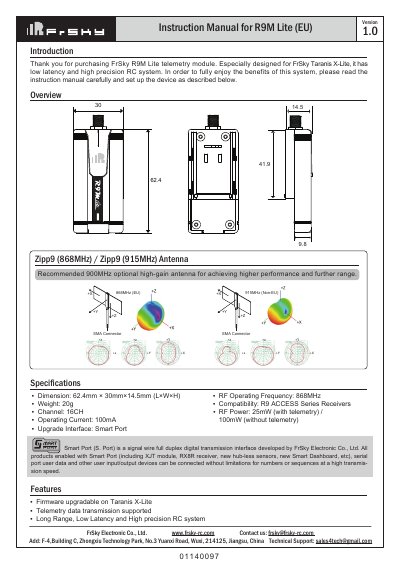

FrSky R9M Lite Telemetry Module Instruction Manual, introduces the features of the product, including size, weight, channel, operating current, upgrade interface, RF operating frequency, compatibility, RF power, etc.
This document is the instruction manual for the FrSky R9M Lite telemetry module, specifically designed for use with FrSky Taranis X-Lite transmitters. It details the setup and operation of the device, which operates on 868MHz or 915MHz frequencies with a maximum RF power of 100mW without telemetry.
| Operating Frequency | 868MHz |
|---|---|
| Dimensions | 62.4mm * 30mm*14.5mm |
| Weight | 20g |
| Channel Count | 16CH |
| RF Power (with telemetry) | 25mW |
| RF Power (without telemetry) | 100mW |
| Operating Current | 100mA |
A 900MHz optional high-gain antenna is recommended for achieving higher performance and further range.
Put the transmitter RF module into binding mode, connect the battery to the receiver while holding its F/S button, and wait for the RED LED to flash.
Under Range Check mode, RF power decreases and the range distance reduces to 1/30-1/10 that of the Normal model.
The three failsafe modes are No Pulse, Hold, and Custom.
