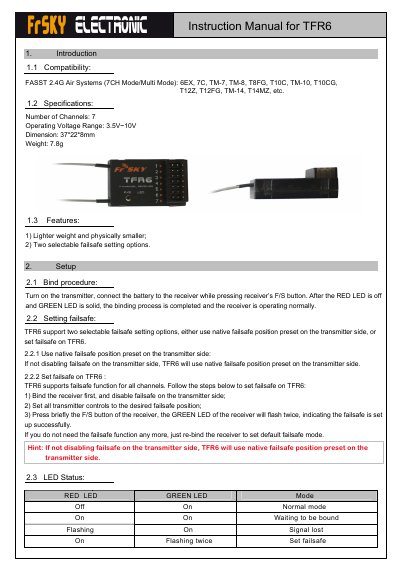

FrSky TFR6 7-Channel Receiver Instruction Manual
The FrSky TFR6 is a 7-channel receiver designed for use with FASST 2.4G Air Systems, including models like the 6EX, 7C, and TM-7. It features a compact design with dimensions of 37*22*8mm and a weight of 7.8g, operating within a voltage range of 3.5V to 10V. The device supports two selectable failsafe setting options to ensure safe operation.
Read onlineFrSky TFR6 specifications
| Number of Channels | 7 |
|---|---|
| Operating Voltage Range | 3.5V~10V |
| Dimension | 37*22*8mm |
| Weight | 7.8g |
All FrSky TFR6 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I bind the TFR6 receiver?
Turn on the transmitter, connect the battery to the receiver while pressing the receiver's F/S button until the RED LED is off and the GREEN LED is solid.
How do I set the failsafe on the TFR6?
Bind the receiver first, disable failsafe on the transmitter, set all transmitter controls to the desired failsafe position, then press the receiver's F/S button briefly.
How do I bind the receiver?
Turn on the transmitter, connect the battery to the receiver while pressing the receiver's F/S button until the RED LED is off and the GREEN LED is solid.
How do I set the failsafe on the receiver?
Bind the receiver first, disable failsafe on the transmitter, set all transmitter controls to the desired position, then press the F/S button briefly until the GREEN LED flashes twice.
