Key facts
- Brand
- FrSky
- Model
- Taranis X9D
- Category
- Other Electronics
- Industry
- Industrial
- Documents
- 4
- Languages
- ZH · EN
- Last added
- 2026-10-03
Start here

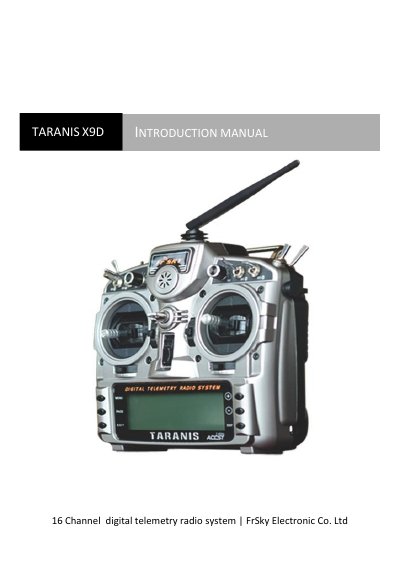

FrSky TARANIS X9D Digital Radio User Manual
This manual provides instructions for the FrSky TARANIS X9D, a 16-channel digital telemetry radio system. It covers system features, introduction, and safety precautions for operating the device.
Read onlineFrSky Taranis X9D specifications
| Model | Taranis X9D Plus 2019 / Taranis X9D Plus SE 2019 |
|---|---|
| Dimensions (L×W×H) | 200 × 194 × 110 mm |
| Weight (without battery) | 670 g (2019) / 700 g (SE 2019) |
| Operating System | OpenTX |
| Channel Count | 24 CH |
| Built‑in RF Module | ISRM‑S‑X9 |
| Operating Voltage | DC 6.5 V ~ 8.4 V |
| Operating Current | 130 mA @ 8.2 V |
| Operating Temperature | -10 °C ~ 60 °C |
| Screen Resolution | 212 × 64 pixels |
| Mini USB Interface | Supports 2S Li‑ion battery balance charging |
| Model Storage Capacity | 60 models (expandable via Micro‑SD) |
| Compatibility | ACCST D16 and ACCESS receivers |
Source: FrSky Taranis X9D Plus 2019/X9D Plus SE 2019 User Manual
All FrSky Taranis X9D documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many channels does the X9D Plus 2019 support?
It supports 24 channels.
From: FrSky Taranis X9D Plus 2019/X9D Plus SE 2019 User Manual
What is the operating voltage range for the transmitter?
The operating voltage is DC 6.5 V to 8.4 V.
From: FrSky Taranis X9D Plus 2019/X9D Plus SE 2019 User Manual
What is the function of a long press on the PAGE key from the main views?
A long press of the PAGE key will bring up the telemetry display from the main screen.
From: FrSky TARANIS X9D Digital Telemetry Radio System User Guide
What happens if the Sound Mode is set to Quiet regarding system warnings?
If the mode is "Quiet", the radio will not sound warnings like a low battery, though it will remind you when turning on.
From: FrSky TARANIS X9D Digital Telemetry Radio System User Guide
What is the FrSky TARANIS X9D?
It is a 16 channel digital telemetry radio system.
How long should NiMH batteries be charged before flying?
They must be recharged for at least 8 hours before each session.
