Key facts
- Brand
- FrSky
- Model
- Taranis X9 Lite
- Category
- Other Electronics
- Industry
- Industrial
- Documents
- 4
- Languages
- EN
- Last added
- 2023-10-15
Start here

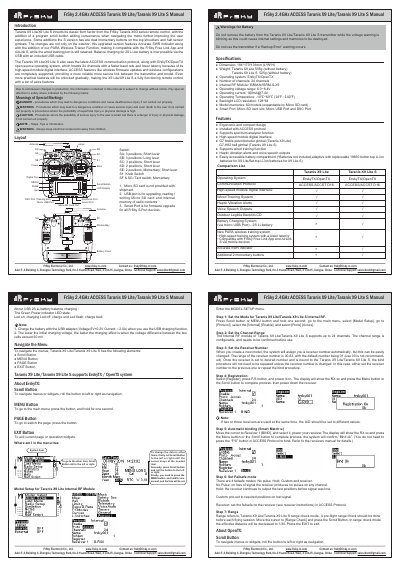

FrSky Taranis X9 Lite/X9 Lite S User Manual
The document serves as a user guide for the FrSky Taranis X9 Lite and Taranis X9 Lite S radio controllers. It details hardware features such as the ergonomic design, G7 or G7-H92 gimbals depending on the model, and connectivity options including Micro USB, Smart Port, and DSC ports. The text explains navigation using scroll buttons and menu keys to access functions like Model Setup, Protocol configuration (ACCESS/ACCST), and failsafe settings.
Read onlineFrSky Taranis X9 Lite specifications
| Dimension | 184*170*101mm (L*W*H) |
|---|---|
| Weight | Taranis X9 Lite 505g / Taranis X9 Lite S 525g (without battery) |
| Operating system | ErskyTX/OpenTX |
| Number of channels | 24 channels |
| Operating voltage range | 6.0~8.4V |
| Operating current | [email protected] |
| Backlight LCD resolution | 128*64 |
All FrSky Taranis X9 Lite documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the four failsafe modes available?
The four failsafe modes are No pulse, Hold, Custom, and receiver.
What is the purpose of the Range Check mode?
It allows a pre-flight range check where the effective distance is decreased to 1/30.
What operating systems does the Taranis X9 Lite support?
The Taranis X9 Lite supports the ErskyTX and OpenTX open-source operating systems.
How many channels does the Taranis X9 Lite have?
The Taranis X9 Lite boasts 24 channels with a faster baud rate and lower latency.
How do I navigate the menus on the Taranis X9 Lite?
Use the Scroll Button to navigate left or right, the MENU button to access specific menus, the PAGE button to switch pages, and the EXIT button to exit operations.
What is the channel range supported by the Internal RF module?
The Internal RF module of X9 Lite supports up to 24 channels, and the channel range is configurable.
