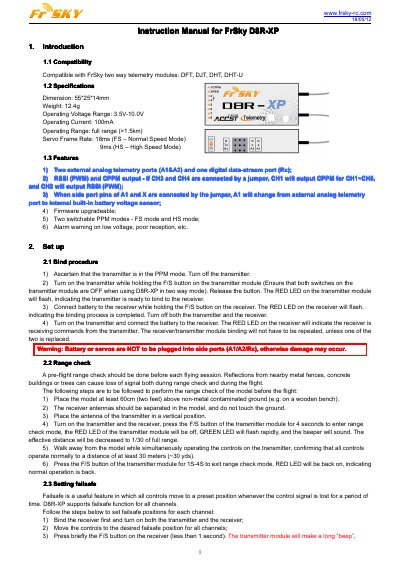

FrSky D8R-XP Receiver Instruction Manual
This document provides instructions for the FrSky D8R-XP receiver. It details compatibility with various FrSky two-way telemetry modules (DFT, DJT, DHT, DHT-U) and lists key specifications such as dimensions, weight, operating voltage range, and servo frame rates.
Read onlineFrSky D8R-XP specifications
| Dimension | 55 * 25 * 14 mm |
|---|---|
| Weight | 12.4 g |
| Operating Voltage Range | 3.5 V - 10.0 V |
| Operating Current | 100 mA |
| Operating Range | > 1.5 km |
| Servo Frame Rate (FS) | 18 ms |
| Servo Frame Rate (HS) | 9 ms |
All FrSky D8R-XP documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which FrSky telemetry modules is the D8R-XP compatible with?
It is compatible with two-way telemetry modules: DFT, DJT, DHT, and DHT-U.
How do you set the failsafe position for all channels?
Bind the receiver, move controls to the desired positions, then briefly press the F/S button on the receiver.
Which telemetry modules is the D8R-XP compatible with?
It is compatible with FrSky two way telemetry modules: DFT, DJT, DHT, and DHT-U.
How do I switch between FS and HS modes?
Turn the transmitter off, connect the battery to the receiver, press the F/S button on the receiver for 6 seconds, then release. The mode alternates each time.
