Start here

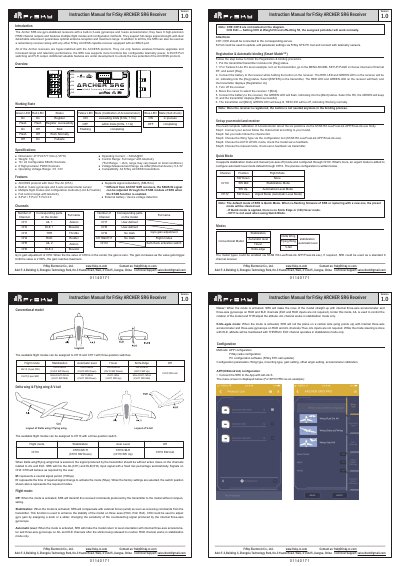

FrSky ARCHER SR6 Receiver Instruction Manual
The FrSky ARCHER SR6 is a gyro-stabilized receiver featuring built-in 3-axis gyroscope and accelerometer sensors. It supports multiple flight configurations including Conventional, Delta Wing, Flying Wing, and V-tail layouts with various stabilization modes such as Stabilization, Automatic Level, Hover, and Knife-Edge.
Read onlineFrSky ARCHER SR6 specifications
| Dimension | 47.5*20.5*11mm (L*W*H) |
|---|---|
| Weight | 13g |
| Configurable SBUS Channels | 16 / 24 |
| PWM Channels | 6 High-precision PWM Channels |
| Operating Voltage Range | 3.5 -10V |
| Control Range | Full range* with telemetry (*Full Range: ģ2km) |
All FrSky ARCHER SR6 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What flight modes are available for the Conventional model?
The available flight modes can be assigned to CH10 and CH11 with three-position switches, including Stabilization, Automatic level, Hover, and Knife-Edge.
How do I configure the Quick Mode?
Quick Mode is configured through CH10, where SW Down sets None, SW Mid sets Stabilization Mode, and SW Up sets Automatical Level Mode.
How do I configure the flight modes on the receiver?
The available flight modes can be assigned to CH10 and CH11 with three-position switches.
Can the ARCHER SR6 be used as a standard 6 channel receiver?
Yes, if required, the SR6 could be used as a standard 6 channel receiver.
