Start here

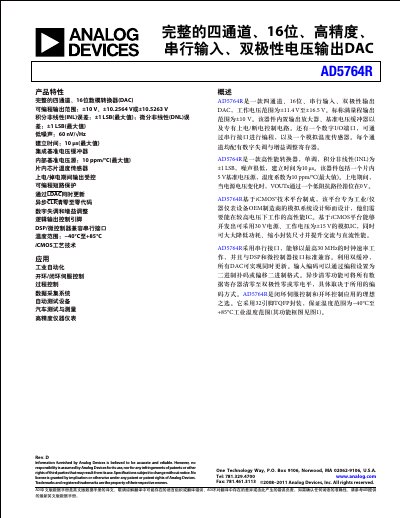

Analog Devices AD5764R DAC Datasheet
The AD5764R is a four‑channel, 16‑bit digital‑to‑analog converter designed for industrial applications. It offers bipolar output, a serial interface compatible with DSP and microcontrollers, an integrated reference buffer, programmable short‑circuit protection and an on‑chip temperature sensor.
The device operates from ±11.4 V to ±16.5 V supplies, provides a ±10 V output range, low noise (60 nV/√Hz) and typical power consumption of 275 mW. It is supplied in a 32‑lead TQFP package and is supported by an evaluation board. This manual is written in Chinese.
Analog Devices AD5764R specifications
| Resolution | 16 bit |
|---|---|
| Number of Channels | 4 |
| Output Voltage Range | ±10 V (typical) |
| Supply Voltage (AVDD/AVSS) | ±11.4 V to ±16.5 V |
| Output Noise | 60 nV/√Hz |
| Operating Temperature Range | ‑40 °C to +85 °C |
All Analog Devices AD5764R documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the AD5764R?
It provides a 16‑bit resolution.
What supply voltage range does the AD5764R require?
It operates from ±11.4 V to ±16.5 V.
What is the maximum settling time of the AD5764R?
The device settles to within ±1 LSB in 10 µs maximum.
What supply voltage range does the AD5764R require?
AVDD must be between 11.4 V and 16.5 V, and AVSS between –11.4 V and –16.5 V.
