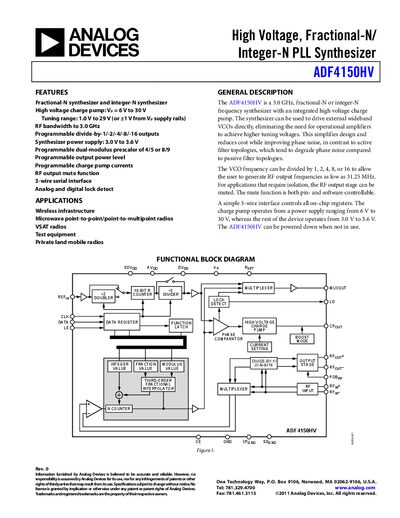

Analog Devices ADF4150HV High Voltage PLL Synthesizer Datasheet
The ADF4150HV is a 3.0 GHz fractional‑N or integer‑N PLL synthesizer with an integrated high‑voltage charge pump (6 V‑30 V). It supports programmable divide‑by‑1/2/4/8/16 outputs, a 3‑wire serial interface, and includes RF mute and lock‑detect functions.
The document provides detailed specifications, timing characteristics, absolute maximum ratings, pin descriptions, typical performance data, and design guidelines for PCB layout and output matching.
Analog Devices ADF4150HV specifications
| Input Frequency Range | 10 MHz – 300 MHz |
|---|---|
| High‑Voltage Charge Pump Supply (V P) | 6 V to 30 V |
| Core Power Supply (AV DD) | 3.0 V – 3.6 V |
| Operating Temperature Range | −40 °C to +85 °C |
| RF Output Frequency Range (with dividers) | 31.25 MHz – 500 MHz |
| RF Input Power Range | −10 dBm to +5 dBm |
Source: Analog Devices ADF4150HV High‑Voltage PLL Synthesizer Datasheet
All Analog Devices ADF4150HV documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What voltage range does the high‑voltage charge pump accept?
The charge pump operates from 6 V up to 30 V.
From: Analog Devices ADF4150HV High‑Voltage PLL Synthesizer Datasheet
How can the RF output be muted?
Driving the PDB RF pin low mutes the RF outputs; this can also be controlled by software.
From: Analog Devices ADF4150HV High‑Voltage PLL Synthesizer Datasheet
