AD7610 is a 16-bit, 250 kSPS, programmable input PulSAR® ADC that provides ±5 V, ±10 V and single-ended 5 V, 10 V input ranges.
The AD7610 is a 16‑bit charge‑redistribution successive approximation (SAR) analog‑to‑digital converter from Analog Devices. It offers programmable input ranges, up to 250 kSPS throughput, internal reference, and both parallel and serial interfaces.

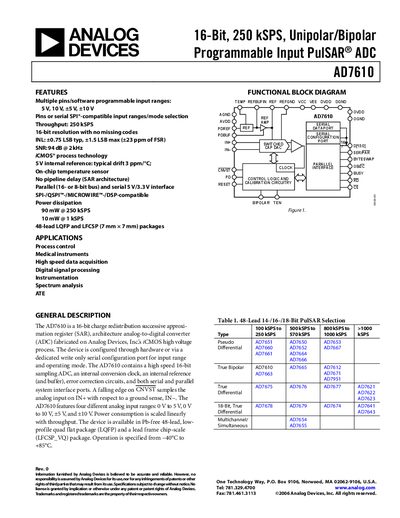

The document lists detailed electrical specifications, timing parameters, absolute maximum ratings, pin functions, package dimensions, and ordering codes. It also includes functional block diagrams, application notes, and evaluation board information.
| Resolution | 16 Bits |
|---|---|
| Throughput Rate | 250 kSPS |
| Internal Reference Output Voltage (25°C) | 4.965 V – 5.035 V |
| Operating Temperature Range | -40°C to +85°C |
The AD7610 provides a 16‑bit resolution.
The device can sample up to 250 kSPS.
