Key facts
- Brand
- Analog Devices
- Model
- ADV7611
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-09
Start here

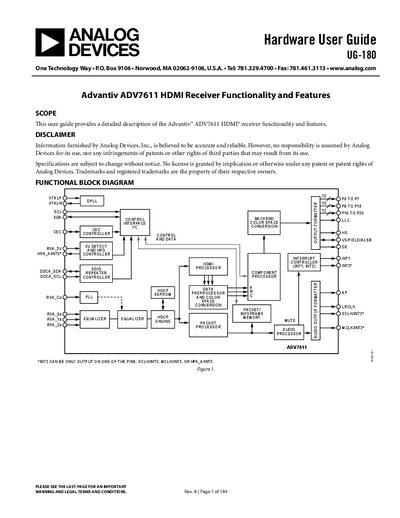

ANALOG DEVICES Hardware User Guide UG-180 Manual
User Manual 184 pages · 1.6 MB · EN
This hardware user guide describes the functionality, features, and operation of the ADV7611 HDMI receiver. It includes a functional block diagram, register access conventions, and field function descriptions to aid hardware developers and system integrators.
The guide covers HDMI receiver capabilities, component video processing, video output formats, pin configuration, global control registers, and power‑down modes, along with extensive tables of register definitions and interrupt handling.
Analog Devices ADV7611 specifications
| Package | 10 mm × 10 mm, 64‑pin LQFP_EP |
|---|---|
| Operating Temperature Range | −40 °C to +85 °C |
| HDMI Version Support | HDMI 1.4a with 3D TV formats up to 1080 p60@8‑bit |
| Maximum Video Resolution | UXGA 60 Hz 8‑bit |
| Stereo Audio Sampling Rate | up to 192 kHz |
| Multichannel Audio Sampling Rate (TDM I2S) | up to 48 kHz |
| HDCP Version | HDCP v1.4‑compliant |
| Equalizer Capability | Programmable front‑end equalization for long cable lengths |
All Analog Devices ADV7611 documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Other documents 1
Questions answered in these manuals
What HDMI version does the ADV7611 support?
It supports HDMI 1.4a with mandatory 3D TV formats up to 1080 p60@8‑bit.
What is the operating temperature range of the ADV7611?
The device operates from –40 °C to +85 °C.
