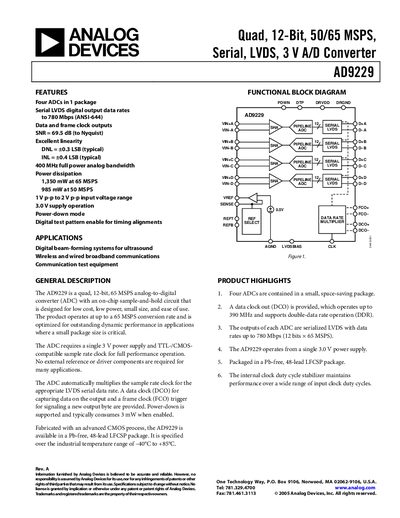

Analog Devices AD9229 Datasheet
The AD9229 is a quad, 12‑bit analog‑to‑digital converter designed for low cost, low power, and small size. It operates from a single 3 V supply and provides LVDS serial outputs with data rates up to 780 Mbps. The device includes on‑chip sample‑and‑hold, power‑down mode (≈3 mW), and a wide‑band analog front‑end (400 MHz full‑power bandwidth).\n\nThe ADC is offered in a Pb‑free 48‑lead LFCSP package and is qualified for industrial temperature ranges (‑40 °C to +85 °C). Detailed specifications cover resolution, SNR, power dissipation, clock rates, pin configuration, and timing characteristics, making it suitable for ultrasound beam‑forming, broadband communications, and test equipment.
Read onlineAnalog Devices AD9229 specifications
| Resolution | 12 bits |
|---|---|
| Supply Voltage (AVDD/DRVDD) | 3.0 V |
| Power Dissipation (65 MSPS) | 1.35 W |
| Power‑Down Consumption | 3 mW |
| LVDS Output Data Rate | up to 780 Mbps |
| Operating Temperature Range | -40 °C to +85 °C |
Source: Analog Devices AD9229 Datasheet
All Analog Devices AD9229 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the AD9229 require?
The AD9229 operates from a single 3.0 V power supply.
What is the maximum LVDS data rate of the AD9229?
The LVDS serial outputs can run at up to 780 Mbps.
What supply voltage does the AD9229 require?
The AD9229 operates from a single 3.0 V power supply.
From: Analog Devices AD9229 Quad 12‑Bit 50/65 MSPS Serial LVDS 3 V A/D Converter Datasheet
What is the maximum LVDS data rate of the AD9229?
The LVDS serial outputs can run at up to 780 Mbps.
From: Analog Devices AD9229 Quad 12‑Bit 50/65 MSPS Serial LVDS 3 V A/D Converter Datasheet
