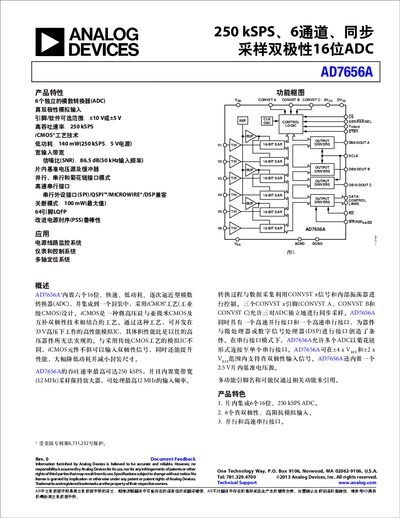

Analog Devices AD7656A ADC Datasheet
The AD7656A integrates six independent 16‑bit SAR ADCs in a single 64‑pin LQFP package, offering true bipolar analog inputs selectable for ±10 V or ±5 V ranges. It features parallel and high‑speed serial interfaces, including SPI/QSPI/MICROWIRE compatibility, and supports daisy‑chain operation.
Designed with iCMOS® technology, the device provides a 250 kSPS throughput, 12 MHz input bandwidth, 86.5 dB SNR, and low power consumption (140 mW at 250 kSPS, 5 V). The datasheet includes detailed pin configurations, timing specifications, absolute maximum ratings, and typical performance graphs. This manual is written in Chinese.
Analog Devices AD7656A specifications
| Sampling rate | 250 kSPS |
|---|---|
| Resolution | 16 bits |
| Number of ADC channels | 6 |
| Power consumption (normal mode, static) | 143 mW |
All Analog Devices AD7656A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD7656A?
The AD7656A can sample at up to 250 kSPS.
How many independent ADC channels does the AD7656A provide?
It provides six independent 16‑bit ADC channels.
What is the maximum sampling rate of the AD7656/AD7657/AD7658?
The devices support a maximum throughput of 250 kSPS.
