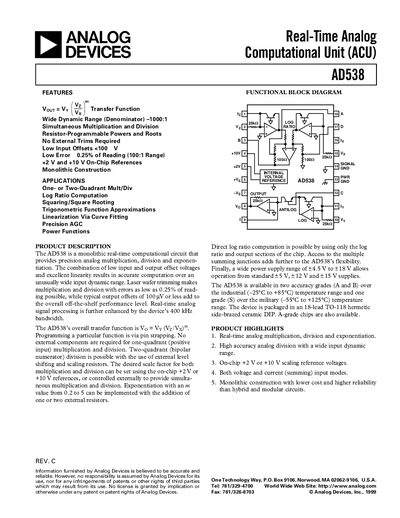

This document is the AD538 datasheet, which introduces the features of this product.
The AD538 provides real‑time analog multiplication, division and exponentiation using resistor‑programmable powers and on‑chip voltage references (+2 V and +10 V). It features low input offsets (<100 µV), low error (0.25 % of reading) and a wide input dynamic range of 1000:1.
The device operates from a 4.5 V to +18 V supply, is available in several accuracy grades (A, B, S) and packaged in an 18‑lead TO‑118 hermetic side‑brazed ceramic DIP. Typical bandwidth is 400 kHz for one‑quadrant multiplication/division, with output currents of 5 mA to 10 mA.
| Supply Voltage Range | 4.5 V to +18 V |
|---|---|
| Output Current | 5 mA to 10 mA |
| Operating Temperature Range (industrial) | –25 °C to +85 °C |
| Package | 18‑lead TO‑118 hermetic side‑brazed ceramic DIP |
The AD538 provides an on‑chip +2 V unbuffered reference and a +10 V buffered reference.
It can operate up to +18 V.
It is offered in an 18‑lead TO‑118 hermetic side‑brazed ceramic DIP.
