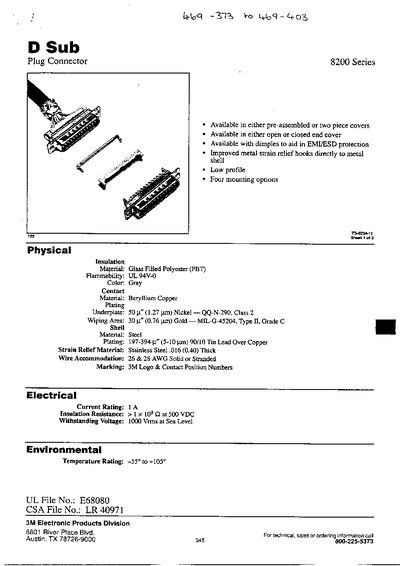

The 8200 Series D‑sub plug connector is offered with pre‑assembled or two‑piece covers, open or closed end covers, and optional dimples for EMI/ESD protection. It features improved metal strain‑relief hooks, low‑profile design, and four mounting options.
Electrical ratings include a 1 A current rating, insulation resistance greater than 1 × 10⁹ Ω at 500 VDC, and a withstanding voltage of 1000 Vrms at sea level. The connector operates from –55 °C to +105 °C and complies with UL 94V‑0 flammability standards.
| Insulation Material | Glass Filled Polyester (PBT) |
|---|---|
| Flammability Rating | UL 94V‑0 |
| Color | Gray |
| Contact Material | Beryllium Copper |
| Shell Material | Steel |
| UL File No. | E68080 |
| CSA File No. | LR 40971 |
The insulation is made of glass‑filled polyester (PBT).
