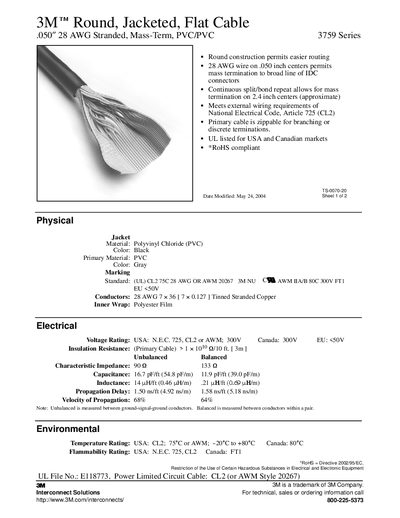

3M 3759 Series Round, Jacketed, Flat Cable 28 AWG Stranded, Mass-Term, PVC/PVC
The 3M 3759 Series round jacketed flat cable provides a .050" 28 AWG stranded, mass‑termination design for easy routing and connection to IDC connectors. It meets NEC Article 725 (CL2) requirements and is UL listed for U.S. and Canadian markets.
The document includes detailed physical, electrical and environmental specifications, ordering dimensions, and warranty terms for the cable, along with contact information for technical and sales support.
| Voltage Rating | USA: N.E.C. 725, CL2 or AWM; 300V Canada; <50V EU |
|---|---|
| Insulation Resistance | > 1 × 10⁶ Ω/10 ft |
| Characteristic Impedance | 90 Ω unbalanced, 133 Ω balanced |
| Capacitance | 16.7 pF/ft (54.8 pF/m) unbalanced, 11.9 pF/ft (39.0 pF/m) balanced |
| Inductance | 14 µH/ft (0.46 µH/m) unbalanced, 0.21 µH/ft (0.69 µH/m) balanced |
| Propagation Delay | 1.50 ns/ft (4.92 ns/m) unbalanced, 1.58 ns/ft (5.18 ns/m) balanced |
| Velocity of Propagation | 68 % unbalanced, 64 % balanced |
| Temperature Rating | USA CL2 75 °C or AWM –20 °C to +80 °C; Canada 80 °C |
| Flammability Rating | USA N.E.C. 725 CL2; Canada FT1 |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Color | Black (Gray also available) |
| Conductors | 28 AWG 7 × 36 tinned stranded copper |
It is rated for USA N.E.C. 725 CL2 or AWM, 300 V in Canada, and less than 50 V in the EU.
In the USA it is rated for CL2 75 °C or AWM –20 °C to +80 °C, and 80 °C in Canada.
The jacket is made of polyvinyl chloride (PVC) and is supplied in black (gray also listed).
The cable has a characteristic impedance of 90 Ω unbalanced and 133 Ω balanced.
