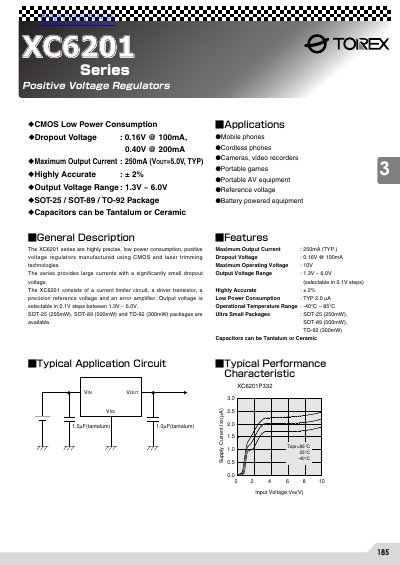

Torex XC6201 Series Voltage Regulator Datasheet
The XC6201 series are highly precise, low‑power positive voltage regulators built with CMOS and laser‑trimming technology. They offer selectable output voltages from 1.3 V to 6.0 V in 0.1 V steps, feature a very low dropout voltage, and are available in ultra‑small SOT‑25, SOT‑89 and TO‑92 packages. The device includes a current‑limit circuit, driver transistor, precision reference and error amplifier.
Typical applications include mobile phones, cordless phones, cameras, video recorders, portable game and AV equipment, reference voltage sources and battery‑powered devices. Key specifications such as maximum output current, dropout voltage, operating temperature range and package power dissipation are listed in the electrical characteristics tables.
Torex XC6201 specifications
| Output Voltage Range | 1.3 V – 6.0 V |
|---|---|
| Maximum Output Current | 250 mA (typical) |
| Dropout Voltage | 0.16 V @ 100 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Available Packages | SOT‑25 (250 mW), SOT‑89 (500 mW), TO‑92 (300 mW) |
| Input Voltage Range | 1.8 V – 10 V |
| Power Dissipation (SOT‑25) | 250 mW |
| Capacitor Types | Tantalum or Ceramic |
All Torex XC6201 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the dropout voltage of the XC6201 series?
The dropout voltage is 0.16 V when the load current is 100 mA.
Which package options are available for the XC6201 regulators?
The regulators are offered in SOT‑25 (250 mW), SOT‑89 (500 mW) and TO‑92 (300 mW) packages.
What is the dropout voltage of the XC6201 at 100 mA?
The dropout voltage is 0.16 V at 100 mA.
From: Torex XC6201 Series Positive Voltage Regulator Datasheet
What is the maximum output current the XC6201 can supply?
The regulator can supply up to 250 mA (typical).
From: Torex XC6201 Series Positive Voltage Regulator Datasheet
What is the dropout voltage of the XC6201 series?
The typical dropout voltage is 0.16 V at a load of 100 mA (0.40 V at 200 mA).
Which package options are available for the XC6201 regulators?
The series is offered in three ultra‑small packages: SOT‑25, SOT‑89 and TO‑92.
