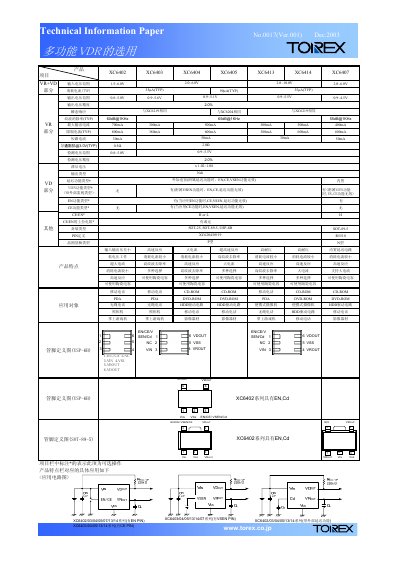

Torex XC6402 Series Power Management Chip Datasheet
The XC6402 series from Torex are low‑power voltage‑regulation ICs designed for portable devices such as mobile phones, cameras and handheld consoles. They offer selectable functions like EN, CE, VSEN and external delay, and are supplied in SOT‑89‑5 packages.\n\nKey specifications include input voltage ranges from 1.5 V to 6.0 V, output voltages from 0.8 V to 5.6 V, maximum output currents up to 700 mA, ripple rejection of up to 60 dB at 1 kHz, and on‑resistance of 0.5 Ω at 3 V. This manual is written in Chinese.
Read onlineTorex XC6402 series specifications
| Input voltage range | 1.5–6.0 V (XC6402) / 2.0–6.0 V (XC6403) |
|---|---|
| Output voltage range | 0.8–5.0 V / 0.9–5.6 V / 0.9–4.5 V |
| Maximum output current | 700 mA (XC6402) / 300–500 mA (other models) |
| Ripple rejection (typical) | 60 dB@1 kHz (XC6402) / 55 dB@1 kHz (others) |
| Short‑circuit current | 30 mA / 50 mA |
| On‑resistance @3 V (typ) | 0.5 Ω |
| Detection voltage range | 0.8–5.0 V |
| Package type | SOT‑89‑5 |
| Pin count | 5 pins (SOT‑89‑5) |
All Torex XC6402 series documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range for the XC6402 series?
The input voltage range is 1.5 V to 6.0 V for the XC6402 model and 2.0 V to 6.0 V for other models.
What is the maximum output current of the XC6402 chip?
The XC6402 can deliver up to 700 mA, while other models provide between 300 mA and 500 mA.
What is the maximum output current of the XC6402 series?
The series can deliver more than 700 mA, with an absolute limit of 800 mA.
From: Torex XC6402 Series High Current High Speed LDO Regulator Datasheet
What dropout voltage can be expected at 100 mA load?
The dropout voltage is 50 mV when the load current is 100 mA.
From: Torex XC6402 Series High Current High Speed LDO Regulator Datasheet
