TOREX CL-2025 Reel Manual
User Manual

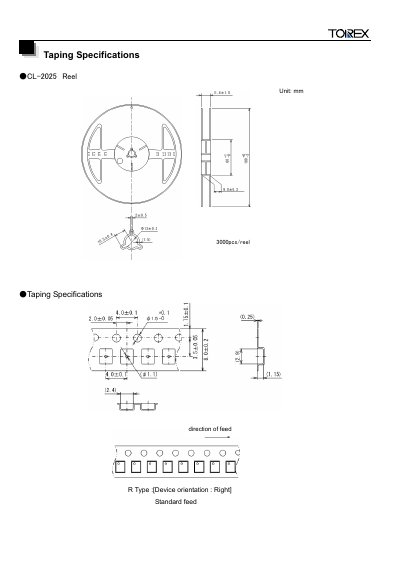

This document provides the Taping Specifications for CL-2025 Reel, including device orientation and standard feed direction.
Read onlineTorex CL-2025 specifications
| Board dimensions | 40 x 40 mm |
|---|---|
| Copper trace coverage | 50 % of board area |
| Board material | Glass Epoxy (FR‑4) |
| Board thickness | 1.6 mm |
| Through‑hole size | 4 x 0.8 mm |
| Maximum junction temperature (Tj max) | 125 °C |
All Torex CL-2025 documents by type
User Manual 3
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum junction temperature (Tj max) for the CL‑2025?
The CL‑2025 is rated for a maximum junction temperature of 125 °C.
What unit are the dimensions given in?
All dimensions are expressed in millimetres.
From: Torex CL-2025 Packaging Information Reference Pattern Layout
What is the model number covered by this document?
The document provides data for the CL-2025 model.
From: Torex CL-2025 Packaging Information Reference Pattern Layout
