TOREX USPQ-4B03 Reel Manual
User Manual

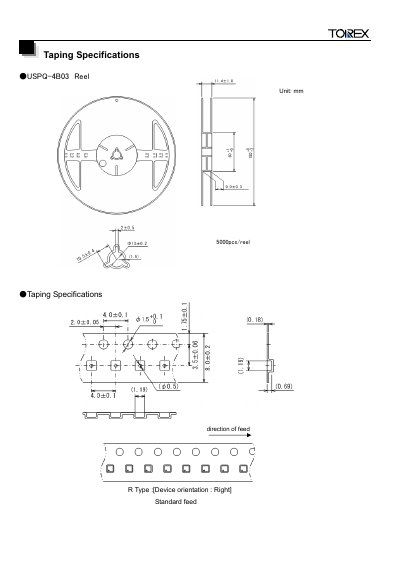

This document provides technical specifications for USPQ-4B03 Reel and Taping Specifications, including information on the direction of feed, device orientation, and standard feed of 5000pcs/reel.
Read onlineTorex USPQ-4B03 specifications
| Board Dimensions | 40 x 40 mm (1600 mm²) |
|---|---|
| Board Structure | 4 Copper Layers |
| Material | Glass Epoxy (FR‑4) |
| Board Thickness | 1.6 mm |
| Through‑hole Diameter | 4 x 0.8 mm |
| Maximum Junction Temperature (Tj max) | 125 °C |
