Start here

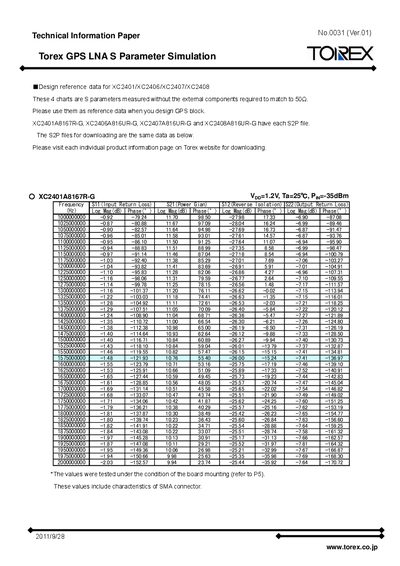

Torex GPS LNA S Parameter Simulation Data Sheet
This technical information paper provides measured S‑parameter data for four Torex GPS low‑noise amplifiers (XC2401A8167R‑G, XC2406A816UR‑G, XC2407A816UR‑G, XC2408A816UR‑G). The data are presented as log‑magnitude and phase values for input return loss (S11), power gain (S21), reverse isolation (S12) and output return loss (S22) over a frequency range from 1 GHz to 2 GHz.
The measurements were performed on board‑mounted devices with SMA connectors, at a supply voltage of 1.2 V (XC2401) or 2.85 V (XC2406‑XC2408), ambient temperature 25 °C, and an input power of –35 dBm. S2P files for each model can be downloaded from the individual product pages on the Torex website.
Torex XC2406A816UR-G specifications
| Supply voltage (Vpp) – XC2401 | 1.2 V |
|---|---|
| Supply voltage (Vce) – XC2406/7/8 | 2.85 V |
| Input power (Piy) | -35 dBm |
All Torex XC2406A816UR-G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How can I obtain the S2P files for the GPS LNA models?
Visit each individual product information page on the Torex website to download the S2P files.
What test conditions were used for the S‑parameter measurements?
The values were measured on board‑mounted devices with SMA connectors, at 25 °C, with Vpp=1.2 V (XC2401) or Vce=2.85 V (XC2406‑XC2408), and an input power of –35 dBm.
What is the typical noise figure of the XC2406A816UR-G?
The typical noise figure is 0.96 dB at 1.575 GHz.
From: Torex XC2406A816UR-G 1.6GHz ON/OFF Function LNA Datasheet
What voltage range can the LNA operate on?
It operates from 1.71 V up to 3.63 V.
From: Torex XC2406A816UR-G 1.6GHz ON/OFF Function LNA Datasheet
