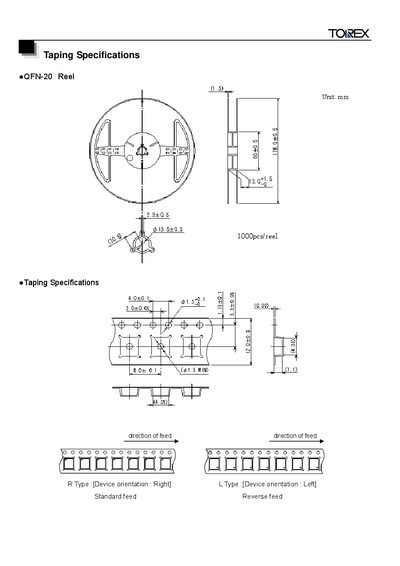

Torex QFN-20 Reel Manual
This one‑page manual gives the taping specifications for the Torex QFN‑20 component reel, including dimensions and capacity. It lists the standard reel size and the number of parts that can be loaded.
The document also describes the allowed feed directions (standard and reverse) and the device orientation options (right‑handed or left‑handed) for proper handling during assembly.
Torex QFN-20 specifications
| Reel capacity | 1000 pcs/reel |
|---|---|
| Feed direction | Standard, Reverse |
| Device orientation | Right, Left |
Source: Torex QFN-20 Reel Manual
All Torex QFN-20 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many QFN‑20 parts fit on a reel?
The reel holds 1000 pieces per reel.
From: Torex QFN-20 Reel Manual
What feed directions are supported for the QFN‑20 reel?
Both standard feed and reverse feed are supported.
From: Torex QFN-20 Reel Manual
What is the maximum junction temperature for the QFN‑20 package?
The maximum junction temperature (Tj max) is 125 °C.
Does the QFN-20 package have a chamfer?
No, the package does not have a filet (chamfer).
What unit are the dimensions given in?
All dimensions are expressed in millimetres.
