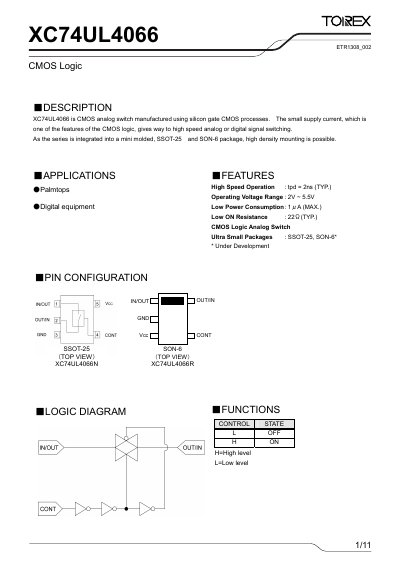

Torex XC74UL4066 CMOS Logic Analog Switch Datasheet
The XC74UL4066 is a CMOS analog switch designed for high‑speed signal routing in portable and digital equipment. It is offered in ultra‑small SSOT‑25 and SON‑6 packages, enabling high‑density mounting. Typical applications include palmtops and other digital devices.
The datasheet details key parameters such as a typical propagation delay of 2 ns, low supply current (1 µA max), and a low on‑resistance of 22 Ω. Electrical characteristics, recommended operating conditions, and test circuit waveforms are provided to aid designers in implementing the device.
Torex XC74UL4066 specifications
| Typical propagation delay (tpd) | 2 ns |
|---|---|
| Supply voltage range | 2 V – 5.5 V |
| Maximum supply current | 1 µA |
| Typical ON resistance | 22 Ω |
| Package types | SSOT‑25, SON‑6 |
All Torex XC74UL4066 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical propagation delay of the XC74UL4066?
The typical propagation delay is 2 ns.
What supply voltage range does the XC74UL4066 support?
It operates from 2 V to 5.5 V.
What is the operating voltage range of the XC74UL4066M?
The device operates from 2 V up to 5.5 V.
What is the typical propagation delay time?
The typical propagation delay is 3 ns.
