USPN-4 Power Dissipation Data Sheet

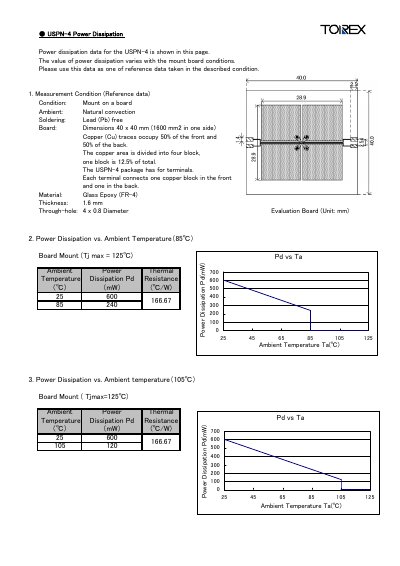

This document provides power‑dissipation data for the USPN‑4 semiconductor device. The data are intended for reference when the device is mounted on a standard board under the conditions described.
Measurement conditions include mounting on a 40 × 40 mm FR‑4 board, natural convection ambient, lead‑free soldering, 1.6 mm board thickness, copper traces covering 50 % of both front and back, and four 0.8 mm through‑hole terminals. Power‑dissipation versus ambient temperature curves are given for 85 °C and 105 °C board‑mount scenarios, with a thermal resistance of 166.67 ℃/W.
Torex USPN-4 specifications
| Board dimensions | 40 x 40 mm (1600 mm² per side) |
|---|---|
| Copper trace coverage | 50 % front, 50 % back |
| Package material | Glass Epoxy (FR‑4) |
| Board thickness | 1.6 mm |
| Through‑hole size | 4 × 0.8 mm diameter |
| Thermal resistance | 166.67 ℃/W |
